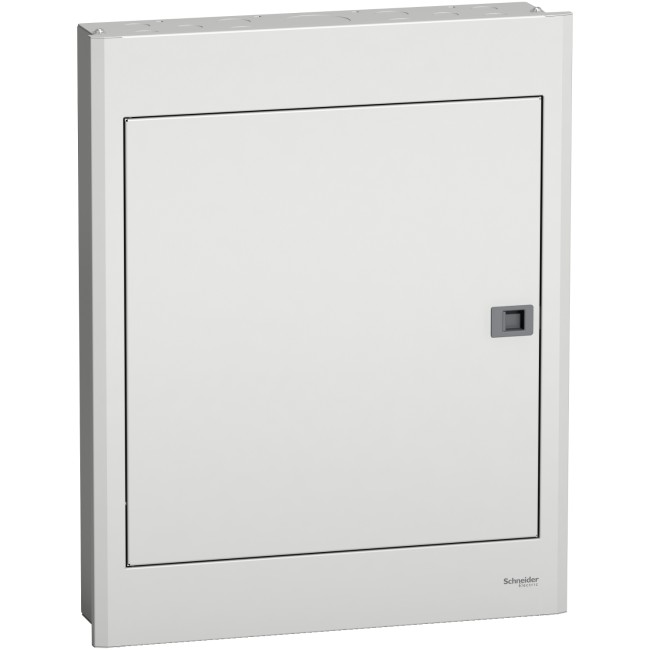

Schneider Easy9 distribution board - 3P - 125A - 30 ways- straight with fixlink EZ9ET30L
Model :EZ9ET30L
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Easy9 distribution board - 3P - 125A - 30 ways- straight with fixlink EZ9ET30L
Specifications
| Range | Easy9 |
|---|---|
| Product name | VTPN |
| Product or component type | Distribution board |
| Provided equipment | 1 x washer 4 x screws Removable front cover Copper link Insulated fishbone Adjustable pan assembly Provision for incomer Blanking plate |
| Enclosure mounting | Surface Flush |
|---|---|
| Network number of phases | Three phase |
| Number of ways | 30 ways |
| type of rail | DIN |
| Cable entry | 11 knock-outs |
| Type of door | Plain door |
| [In] rated current | 125 A |
| Enclosure material | Powder coated steel |
| Width | 466 mm outside: |
| Height | 622 mm outside: |
| Depth | 110 mm outside: |
| Colour | Grey (RAL 7035) |
| standards | IEC 61439-1 IEC 61439-3 |
|---|---|
| Product certifications | ASTA |
| IP degree of protection | IP40 conforming to IEC 60529 (closed door) |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Ambient air temperature for operation | -5…50 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11 cm |
| Package 1 Width | 46.6 cm |
| Package 1 Length | 62.2 cm |
| Package 1 Weight | 16 kg |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 1 |
| Package 2 Height | 13 cm |
| Package 2 Width | 51 cm |
| Package 2 Length | 72.8 cm |
| Package 2 Weight | 16 kg |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 14 |
| Package 3 Height | 112.8 cm |
| Package 3 Width | 100 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 224 kg |
