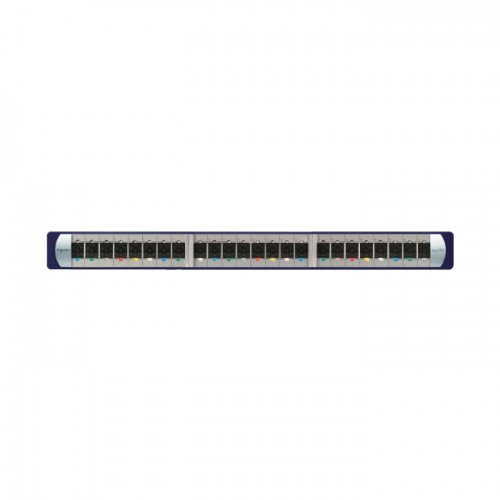

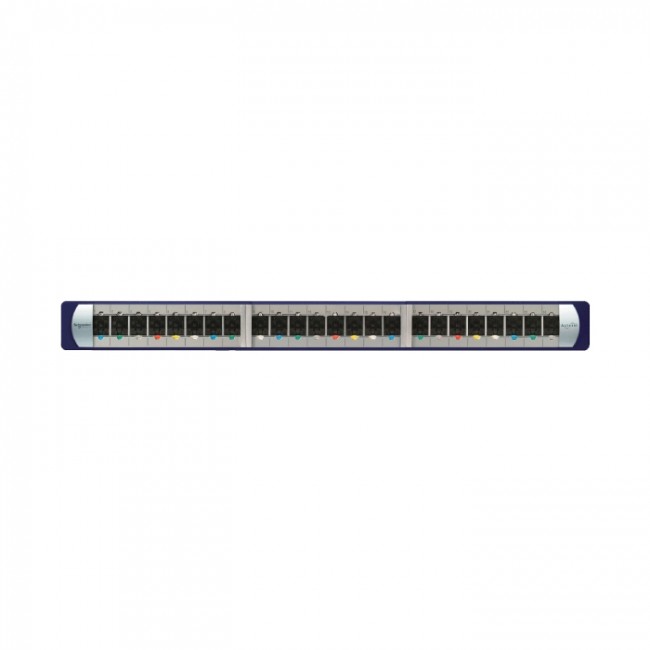

Schneider Electric Actassi Cat 6 Patch Panel UTP 24 Port Non Shutter 1U loaded Patch Panel ACTPP6U24NSS_ SE
Actassi Cat 6, Patch Panel, UTP, 24 Port, Non Shutter, 1U loaded Patch Panel
Model :ACTPP6U24NSS_ SE
SKU :ACTPP6U24NSS_ SE
Free Delivery
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Electric Actassi Cat 6 Patch Panel UTP 24 Port Non Shutter 1U loaded Patch Panel ACTPP6U24NSS_ SE
Schneider Electric Actassi Cat 6 Patch Panel UTP 24 Port Non Shutter 1U loaded Patch Panel ACTPP6U24NSS_ SE
Specifications
| range of product | Actassi |
|---|---|
| product or component type | Patch panel |
| device presentation | Loaded |
| provided equipment | With RJ45 connectors |
| [In] rated current | 1.5 A |
|---|---|
| number of port | 24 port of UTP |
| product compatibility | Standard 19" cabinet/rack |
| communication network category | 6 |
| contact resistance | 1 mOhm |
| insulation resistance | >= 200 MOhm |
| minimum number of matings | 1000 cycles |
| number of rack unit | 1U |
| Type of connector | S-110 keystone |
| ambient air temperature for operation | -40…70 °C |
|---|---|
| standards | ANSI/TIA/EIA-568-B ISO/IEC 11801 Ed.2, 2002 |
| Package 1 Weight | 1.000 kg |
|---|
| Warranty | 18 months |
|---|
