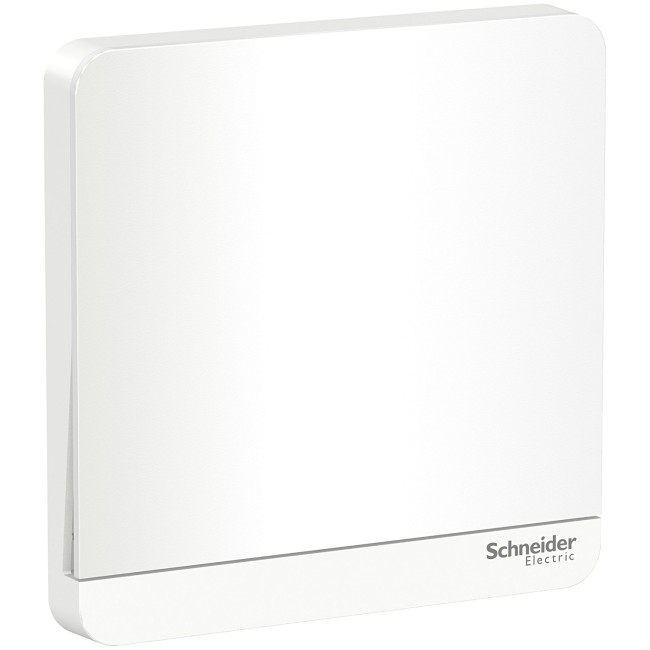

Schneider Electric AvatarOn switch 16AX 250V 1 way LED White E8331L1LED_WE
AvatarOn switch 16AX 250V 1 way LED White
Model :E8331L1LED_WE
SKU :E8331L1LED_WE
Free Delivery
7 days retun policy available
Cash on Delivery available
only 5 item(s) remaining
AED 23.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider Electric AvatarOn switch 16AX 250V 1 way LED White E8331L1LED_WE
Schneider Electric AvatarOn switch 16AX 250V 1 way LED White E8331L1LED_WE
Schneider Electric AvatarOn switch E8331L1LED_WE is a complete product in color white with 1 rocker. This is a 1-pole 1-way switch with a LED indicator. And its rated current is 16AX. It is 86 mm in width, 86 mm in height, 34.2 mm in depth, Its matching mounting box can be recessed into the surface of the wall with flush type. Besides, the IP rating of this device is IP20. The connection terminals of this switch are brass terminal. Being made of polycarbonate, polycarbonate + GF 20 % material, this switch is quite reliable and resistant. What's more, this device is qualified as a green premium product, with minimal use of hazardous substances. And it is mercury free AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.
Specifications
| Product or component type | Switch |
|---|---|
| Device application | Control |
| Load type | Inductive Incandescent lamp Fluorescent lamp Resistive |
| Colour tint | White |
| device presentation | Complete product |
|---|---|
| Rated current | 16 AX at 250 V AC 50/60 Hz |
| Switch function | 1-pole 1-way |
| Number of gangs | 1 gang |
| Number of rocker | 1 |
| Clamping connection capacity | 3 x 2.5 mm² for solid cable(s) 3 x 2.5 mm² for stranded cable(s) 4 x 1.5 mm² for solid cable(s) 4 x 1.5 mm² for stranded cable(s) |
| Connections - terminals | Brass terminal |
| Local signalling | Off: LED indicator, LED (amber) |
| Material | Polycarbonate: grid plate Polycarbonate: base Polycarbonate: dolly Polycarbonate: frame Polycarbonate + GF 20 %: actuator |
| device mounting | Surface Flush |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 34.2 mm |
| IP degree of protection | IP20 |
|---|---|
| Maximum ambient air temperature for operation | 45 °C |
| Operating altitude | 2000 m |
| Relative humidity | 0…95 % |
| Environmental characteristic | UV resistant |
| Standards | SS 227-1 IEC 60669-1 MS IEC 60669-1 BS EN 60669-1 |
