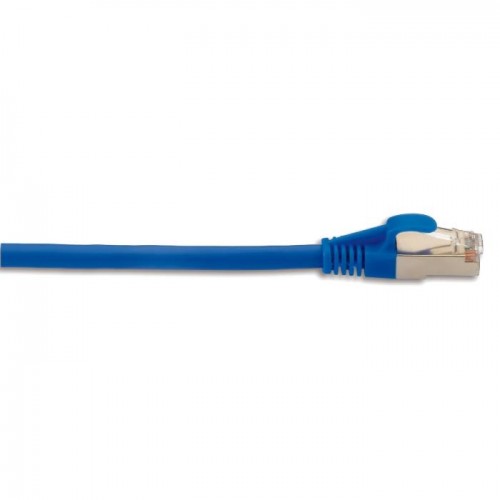

Schneider Electric Cat 6 Patch Cord UTP 3M CM Blue Cable ACTPC6UBCM30BU
Schneider, Cat 6, Patch Cord ,UTP 3M, CM Blue
Model :ACTPC6UBCM30BU
SKU :ACTPC6UBCM30BU
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Cat 6 Patch Cord UTP 3M CM Blue Cable ACTPC6UBCM30BU
Schneider Electric Cat 6 Patch Cord UTP 3M CM Blue Cable ACTPC6UBCM30BU
Specifications
| range | Actassi |
|---|---|
| product | Patch cord |
| colour | Blue |
| cable shielding type | UTP |
| type of cable | 4 pair cables |
|---|---|
| rated voltage | 150 V AC |
| [In] rated current | 1.5 A |
| insulation resistance | 500 MOhm |
| length (customizable value in configurator) | 0…3 m |
| communication network category | 6 |
| contacts material | Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel |
| contact resistance | 10 mOhm |
| AWG gauge | AWG 24 |
| attenuation | Guaranteed: 0.1 dB |
| far end crosstalk [FEXT] | 49.8 dB |
| power sum far end crosstalk [PSFEXT] | 46.9 dB |
| minimum number of matings | 1000 cycles |
| targeted region | Asia Pacific. |
| flame retardance | CM |
|---|---|
| standards | IEC 60603-7 FCC part 68 subpart F AS/NZS 3080:2003 TIA/EIA-568-B ISO/IEC 11801 2nd edition |
| Package 1 Weight | 140.000 g |
|---|---|
| Package 1 Height | 0.080 mm |
| Package 1 width | 302.000 mm |
| Package 1 Length | 210.000 mm |
| Warranty | 18 months |
|---|
