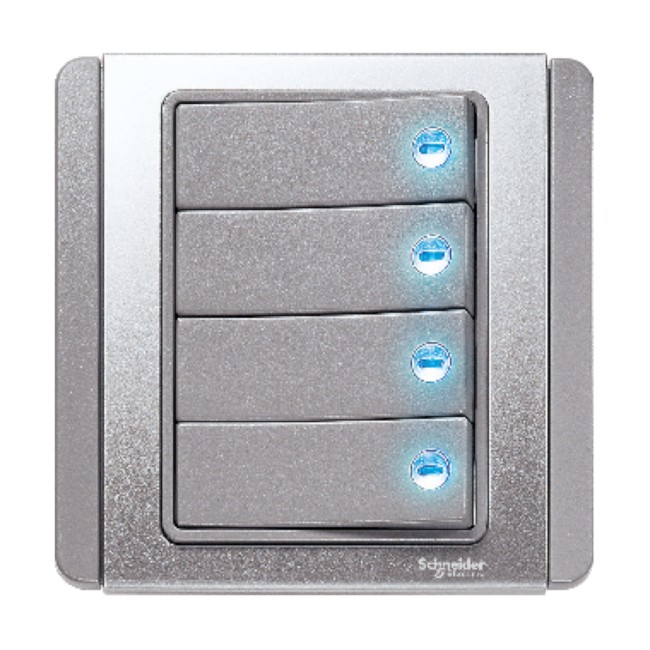

Schneider 250V 4Gang 2way Horizontal Dolly Switch with Blue LED,Grey silver E3034H2-EBGS
Model :E3034H2-EBGS
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider 250V 4Gang 2way Horizontal Dolly Switch with Blue LED,Grey silver E3034H2-EBGS
Specifications
| Range | Neo |
|---|---|
| Product or component type | Control switch |
| Device application | Control |
| Wiring device mounting | Surface Flush |
| Switch function | 2-way |
| Switch application | Switch |
| Load type | Incandescent lamp Inductive Fluorescent lamp Resistive |
| Bulb type | LED (blue) |
| Colour tint | Grey silver |
| Rated current | 10 A at 250 V AC 50/60 Hz |
|---|---|
| Number of gangs | 4 gangs horizontal |
| Material | Brass: metal parts Polycarbonate: plastic part Steel: metal parts |
| Clamping connection capacity | 3 x 2.5 mm² for solid cable(s) 3 x 2.5 mm² for stranded cable(s) 4 x 1.5 mm² for solid cable(s) 4 x 1.5 mm² for stranded cable(s) |
| Connections - terminals | Pillar terminals |
| Width | 87 mm |
| Height | 87 mm |
| Embedding depth | 23.5 mm |
| Depth | 36 mm |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Environmental characteristic | Indoor use |
| Standards | IEC 60669-1 EN 60669-1 GB 16915.1 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.7 cm |
| Package 1 Width | 8.7 cm |
| Package 1 Length | 3.6 cm |
| Package 1 Weight | 0.001 g |
