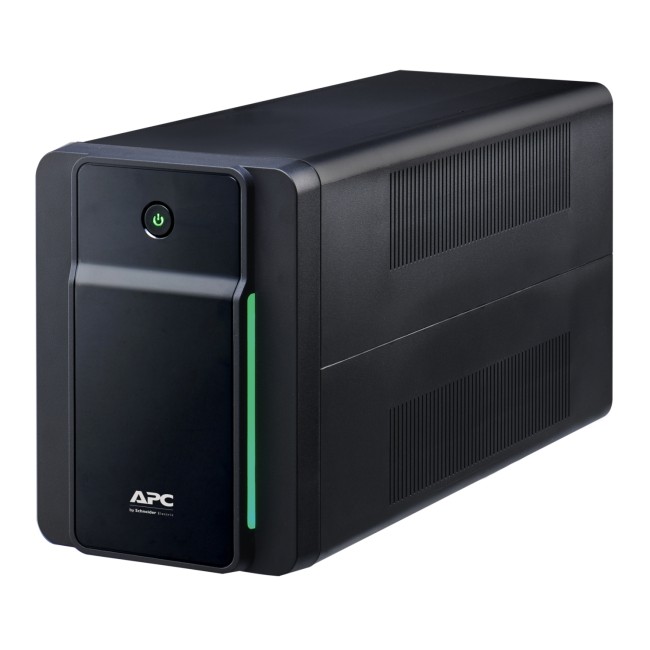

Schneider APC Back-UPS 1200VA, 230V, AVR, 4 universal
Model :BX1200MI-MS
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
AED 515.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider APC Back-UPS 1200VA, 230V, AVR, 4 universal
Specifications
| Lead time | Usually in Stock |
|---|
Run time for load WEnter the total load (power draw) of all devices that will be protected by the UPS. This will be used to estimate the run time of your devices during a total power outage. Adding run time increases availability by allowing the system to operate through longer outages without shutting down. Min-max: 65-650 W | |
|---|---|
Max. Capacity Used The maximum percentage of UPS capacity used to support your specified load. | |
| Main Input Voltage | 230 V |
| rated power in W | 650 W |
| Rated power in VA | 1200 VA |
| output connection type | 4 universal 1 IEC 60320 C13 |
| Cable length | 1.22 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 8 h |
| Battery voltage | 12 V |
| Battery power in VAH | 99 VAh runtime 108 VAh capacity |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC175 |
| Battery graph comments | Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
| Extended runtime | 0 |
| Provided equipment | user manual |
|---|---|
| Max runtime | 120 min |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Colour | Black |
|---|---|
| Height | 19 cm |
| Width | 14 cm |
| Depth | 39 cm |
| Product weight | 7.6 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
|---|---|
| Input voltage limits | 140...300 V |
| Input Power Factor at Full Load | 0.54 |
| Maximum configurable power in W | 650 W |
|---|---|
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Full load runtime | 00:01:00 650 W |
| Half load runtime | 00:05:00 300 W |
| Maximum configurable power in VA | 1200 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
| Product certifications | CE |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Equipment protection policy | Lifetime : 50000 euros |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…40 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…3000 m |
| Acoustic level | 40 dBA |
| IP degree of protection | IP20 |
| Control panel | LED Status display with on line : on battery |
|---|
| Surge energy rate | 273 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 29.7 cm |
| Package 1 Width | 49.5 cm |
| Package 1 Length | 23.5 cm |
| Package 1 Weight | 8.6 kg |
| SCC14 | 10731304410710 |
| Warranty | 2 years repair or replace |
|---|
