Schneider Electric Vivace 1 Gang Cable TVF Connector white KB31TVF
Vivace cable TVF Connector 1 gang white
Model :KB31TVF
SKU :KB31TVF

- Condition: New
Description for Schneider Electric Vivace 1 Gang Cable TVF Connector white KB31TVF
- Schneider Electric Vivace 1 Gang Cable TVF Connector white KB31TVF

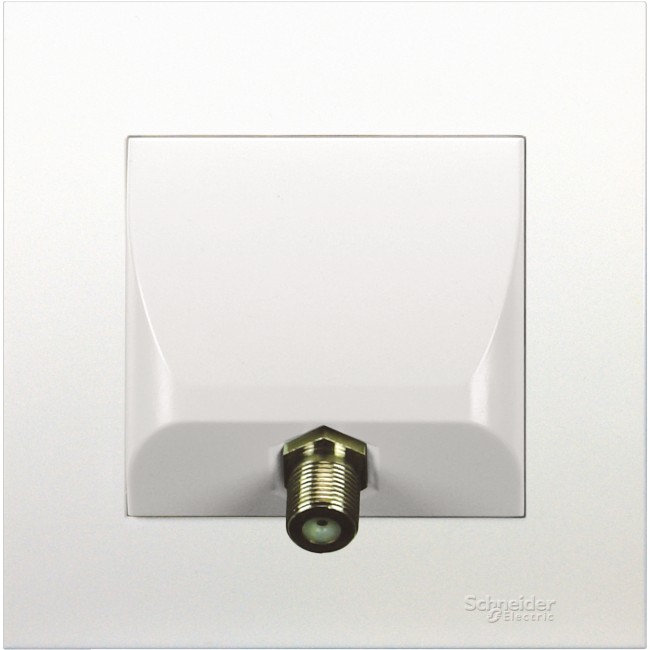

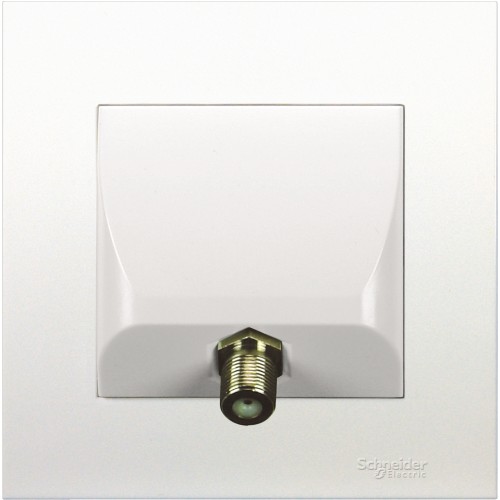

This Vivace one gang television socket applies F-type female outlet It works with 75ohm coaxial cable. The signal frequency range from 5 to 1000MHz It is suitable for CATV and satellite television.The socket comes in white color.
Specifications
Range of product | Vivace |
---|---|
Range | Vivace |
Device short name | KB31 |
Product or component type | TVF socket |
TV socket type | TV |
device presentation | Complete mechanism |
Number of gangs | 1 gang |
---|---|
Number of outputs | 1 |
Connector type | M-110 keystone RJ45 connector |
Material | Polycarbonate: surround Polycarbonate: grid plate Polycarbonate: base |
Projecting depth | 8 mm |
device mounting | Flush |
Mounting support | Wall mounted |
Fixing mode | By screw M3.5 |
Fixing center | 60.3 mm |
Colour tint | White |
Embedding depth | 35 mm |
Connections - terminals | Clamp terminal |
Tightening torque | 0.4 N.m |
Width | 87 mm |
Height | 87 mm |
Main colour tint | White |
Ambient air temperature for operation | -5…40 °C |
---|---|
Relative humidity | 0…95 % |
Environmental characteristic | Indoor use |
