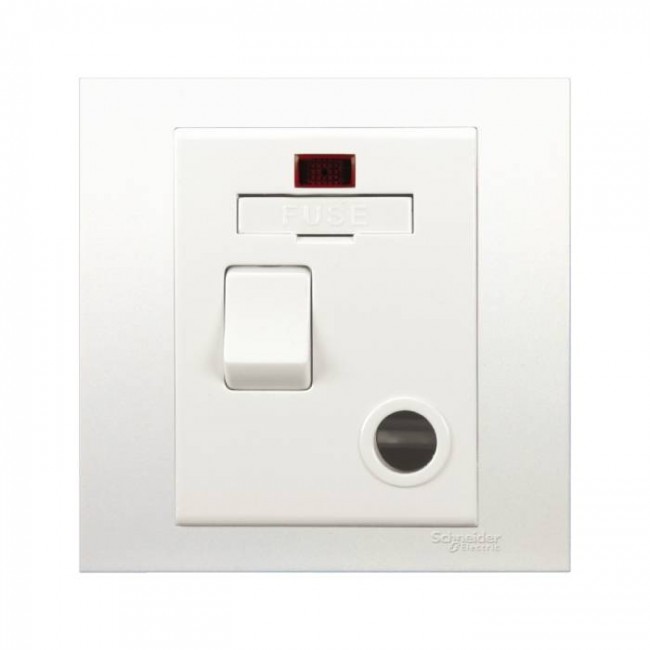

Schneider Electric Vivace Switched Fused Connection Unit White 13A 250V KB31DNFSG
Vivace, Switched Fused Connection Unit, 13A 250V, KB31DNFSG
Model :KB31DNFSG
SKU :KB31DNFSG
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Vivace Switched Fused Connection Unit White 13A 250V KB31DNFSG
Schneider Electric Vivace Switched Fused Connection Unit White 13A 250V KB31DNFSG
Schneider Electric Vivace KB31DNFSG fused connection unit is designed for appliances that do not have or require a fused plug top. It's used for high powered electrical equipment with heavy continuous loads, which requires up to 13A. The Schneider Electric connection unit allows it to have a fantastic modern look without any screws showing. Made from high-quality polycarbonate material, this fused connection unit provides the perfect choice of installation and protection for your home or office needs.
Specifications
| range | Vivace | |
|---|---|---|
| device short name | KB31 | |
| product or component type | Switched fuse mechanism | |
| device presentation | Complete mechanism |
| pilot light | neon indicator | |
|---|---|---|
| number of gangs | 1 gang | |
| Colour tint | White | |
| material | Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base | |
| projecting depth | 8 mm | |
| device mounting | Surface | |
| mounting support | Wall mounted | |
| fixing mode | By screw M3.5 | |
| fixing center | 60.3 mm | |
| embedding depth | 35 mm | |
| rated current | 13 A at 250 V AC, resistive | |
| network frequency | 50 Hz | |
| contacts material | Brass and phosphor bronze | |
| connections - terminals | Pillar terminal | |
| terminal identifier | Earth N in L out N out L in | |
| tightening torque | 0.4 N.m | |
| clamping connection capacity | 2 x 4 mm² input 3 x 2.5 mm² input 1 x 1.5 mm² output 1 x 2.5 mm² output | |
| width | 87 mm | |
| height | 87 mm |
| standards | BS 1363-4 | |
|---|---|---|
| ambient air temperature for operation | -5…40 °C | |
| relative humidity | 0…95 % | |
| environmental characteristic | Indoor use |
| Package 1 Weight | 103.000 g | |
|---|---|---|
| Package 1 Height | 1.000 cm | |
| Package 1 width | 1.000 cm | |
| Package 1 Length | 1.000 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | REACh Declaration | |
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | Yes | |
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure | Product Environmental Profile |
| Warranty | 18 months |
|---|
