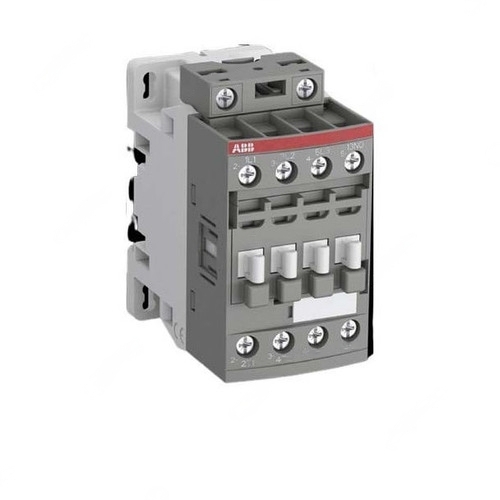

ABB Contactor, 3 Pole, 100-250V, 16A - AF16-30-10

Description for ABB Contactor, 3 Pole, 100-250V, 16A - AF16-30-10

The ABB AF16-30-10 is a reliable 3-pole contactor designed for demanding electrical applications. With a voltage rating of 690V IEC or 600V UL, this contactor is equipped with one built-in auxiliary contact and screw terminals. It is capable of controlling motors up to 7.5 kW at 400VAC (AC-3) or 10 HP at 480V UL, and it can switch power circuits up to 30A (AC-1) or 30A UL for general use.

Key features include:

• Rated Impulse Withstand Voltage: 6kV
• Wide Control Voltage Range: 100-250V (50/60Hz and DC), allowing for large control voltage variations and reduced energy consumption in panels.
• Surge Protection: Built-in surge protection ensures stable operation even in unstable networks.
• Maximum Mechanical Switching Frequency: 3600 cycles per hour
• Wire Stripping Length: 10mm
• Item Name: Contactor
• Model: AF16-30-10
• Manufacturer: ABB
• Color: Grey
• Dimensions: Length: 77mm, Height: 86mm, Width: 45mm
• Current Rating: 16A
• Operational Voltage: 690V
• Frequency: 50/60Hz
• Number of Poles: 3P
• Ingress Protection (IP Rating): IP20
• Terminal Type: Screw
• Operating Altitude: 3000 Mtrs
• Brand Origin: Germany
• Manufacture Part Number: 1SBL177001R1310
• Unit: Piece

This contactor features a block-type design that allows easy extension with add-on auxiliary contact blocks and a wide range of accessories, making it a versatile choice for any control panel.
