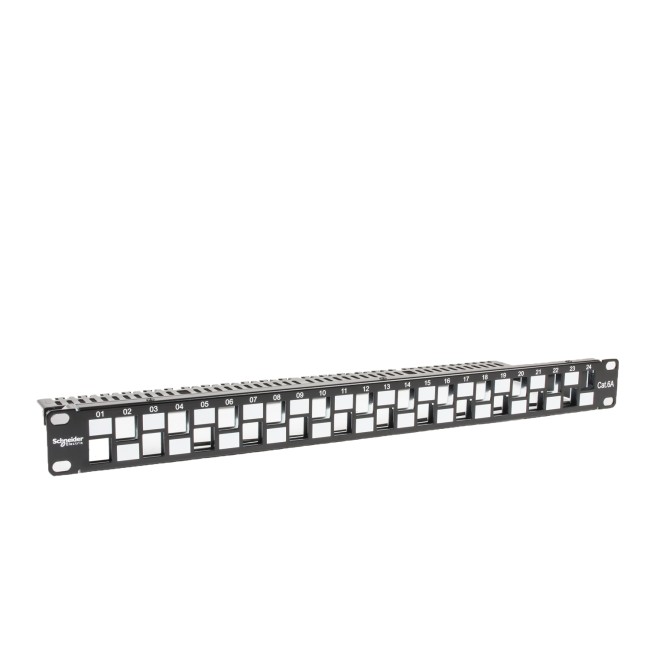

Actassi - patch panel - category 6A - UTP - 24 Port - 1U - straight unloaded
Model :ACTPP6ATGUXXNSS_E
SKU :ACTPP6ATGUXXNSS_E
Free Delivery
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Actassi - patch panel - category 6A - UTP - 24 Port - 1U - straight unloaded
Actassi - patch panel - category 6A - UTP - 24 Port - 1U - straight unloaded
Specifications
| range of product | Actassi |
|---|---|
| product or component type | Patch panel |
| device application | Communication |
| device presentation | Empty |
| provided equipment | Removable cable tray Mounting hardware Cable fixing hardware Label holder |
| colour code | 568 A/B |
| [In] rated current | 1.5 A |
|---|---|
| dielectric strength | 1000 V |
| contacts material | Modular connector: phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel IDC connector: phosphor bronze with nickel plating |
| number of port | 24 port of UTP |
| product compatibility | Standard 19" cabinet/rack |
| AWG gauge | AWG 24...AWG 22 |
| communication network category | 6A |
| contact resistance | 1 mOhm |
| insulation resistance | >= 10 MOhm |
| minimum number of matings | 750 cycles |
| number of rack unit | 1U |
| installation direction | Straight |
| plug, socket, control station shape | Angled |
| pulling force | 140 N |
| surface finish | Powder coated |
| Type of connector | S-110 keystone |
| ambient air temperature for operation | -10…50 °C |
|---|---|
| ambient air temperature for storage | -20…60 °C |
| standards | ANSI/TIA-568-C.2 ISO/IEC 11801 2nd edition:2002: class Ea |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 570 g |
| Package 1 Height | 7 cm |
| Package 1 width | 13 cm |
| Package 1 Length | 42 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 10 |
| Package 2 Weight | 7050 g |
| Package 2 Height | 300 mm |
| Package 2 width | 400 mm |
| Package 2 Length | 600 mm |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 80 |
| Package 3 Weight | 66400 g |
| Package 3 Height | 1500 mm |
| Package 3 width | 800 mm |
| Package 3 Length | 1200 mm |
