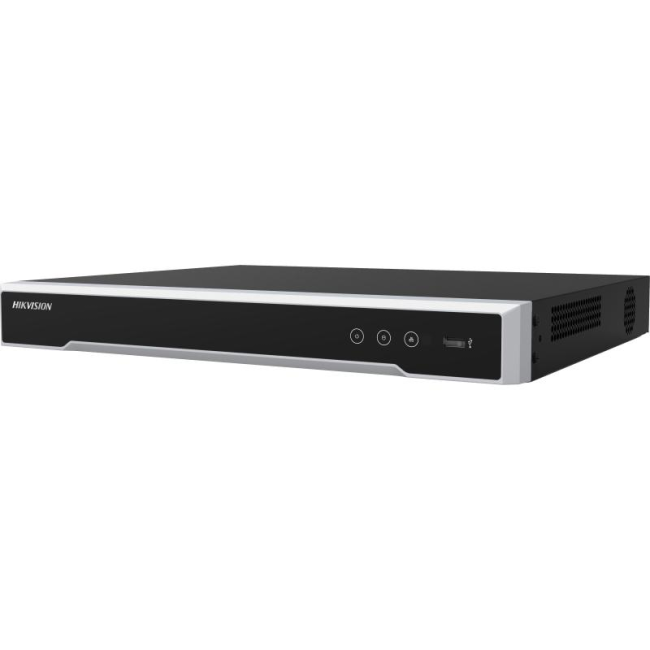

Hikvision 16-Channel 4K UHD @ 30Hz NVR, (No HDD), Up to 160Mbps Bandwidth, With PoE | DS-7616NI-Q2/16P
Hikvision 16-Channel 4K UHD @ 30Hz NVR, (No HDD), Up to 160Mbps Bandwidth, With PoE | DS-7616NI-Q2/16P
Model :DS-7616NI-Q2/16P
SKU :DS-7616NI-Q2/16P
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Hikvision 16-Channel 4K UHD @ 30Hz NVR, (No HDD), Up to 160Mbps Bandwidth, With PoE | DS-7616NI-Q2/16P
16-ch 1U 4K NVR
- Up to 16 channel IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 4K high-definition live view, storage and playback
- Up to 4-ch @ 1080p decoding capacity
- Up to 160 Mbps, high incoming bandwidth ensures IP cameras can be connected
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 2 HDDs for continuous video recording
- Compatible with third-party network cameras
| Video And Audio | |
| IP Video Input16-ch | |
| HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| VGA OutputHDMI,VGA | |
| Incoming Bandwidth80 Mbps ,160 Mbps | |
| Audio Output1-ch, RCA (Linear, 1 KΩ) | |
| Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω) | |
| Decoding | |
| Decoding FormatH.265+,H.265,H.264+,H.264 | |
| Decoding Capability4-ch@1080p | |
| Synchronous Playback16-ch | |
| Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF | |
| Network | |
| Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS | |
| Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface | |
| PoE | |
| Interface N/A | |
| RAID | |
| RAID Type No | |
| Auxiliary Interface | |
| SATA2 SATA interfaces | |
| Capacity Up to 6TB capacity for each disk | |
| USB Interface2 × USB 2.0 | |
| General | |
| Power Supply12 VDC,≤ 40W | |
| Consumption≤ 15W | |
| Working Temperature-10 to +55º C (+14 to +131º F) | |
| Working Humidity10 to 90 % | |
| Chassis1U chassis | |
| Dimension (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0") | |
| Weight≤ 1.8 kg (4.0 lb) |
Specifications
Specifications for Hikvision 16-Channel 4K UHD @ 30Hz NVR, (No HDD), Up to 160Mbps Bandwidth, With PoE | DS-7616NI-Q2/16P
General
Brand
Model
- DS-7616NI-Q2/16P
MEPKART SKU
DS-7616NI-Q2/16P
Date first available
- 21 October, 2020
Shipping Weight
- 3.40 Kg
Shipping Dimensions
- 14.50 cm x 43.50 cm x 39.01 cm
