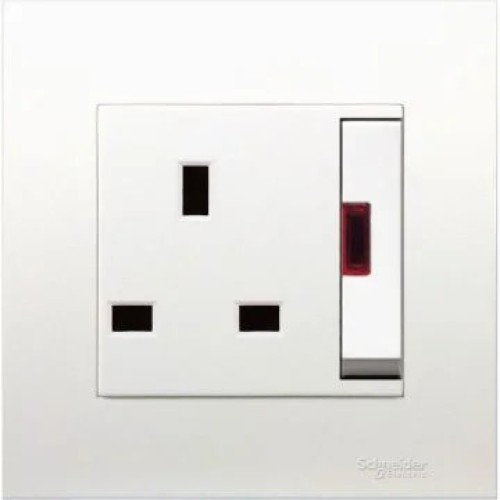

Schneider 1 Gang, 13A 250V British Standard DP Switched Socket, Vivace, Small dolly, White KB15D_WE
Model :KB15D_WE
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider 1 Gang, 13A 250V British Standard DP Switched Socket, Vivace, Small dolly, White KB15D_WE
Specifications
| Range | Vivace |
|---|---|
| Product or component type | Switched socket |
| Device short name | KB15 |
| Device application | Power supply |
| Device presentation | Complete product |
| Switch application | On/off switching |
| Main colour tint | White |
| Colour tint | White |
| Outlet poles configuration | 2P + E |
|---|---|
| Number of gangs | 1 gang |
| Colour tint | White |
| Material | Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base |
| Projecting depth | 8 mm |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Embedding depth | 22.0 mm |
| Rated current | 13 A at 250 V AC, resistive |
| Network frequency | 50/60 Hz |
| Contacts material | Brass and silver inlay |
| Connections - terminals | 4 screw terminals |
| Terminal identifier | L N |
| Tightening torque | 2 N.m |
| Clamping connection capacity | 1.5...4 mm² |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 31.3 mm |
| Net weight | 76.4 g |
| Standards | BS 1363 |
|---|---|
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -5…60 °C |
| Relative humidity | 0…95 % |
| Operating altitude | <= 2000 m |
| Environmental characteristic | Indoor use |
| IP degree of protection | IP20 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.4 cm |
| Package 1 Width | 8.7 cm |
| Package 1 Length | 8.7 cm |
| Package 1 Weight | 93.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15.0 cm |
| Package 2 Length | 19.0 cm |
| Package 2 Weight | 744.0 g |
| Warranty | 18 months |
|---|
