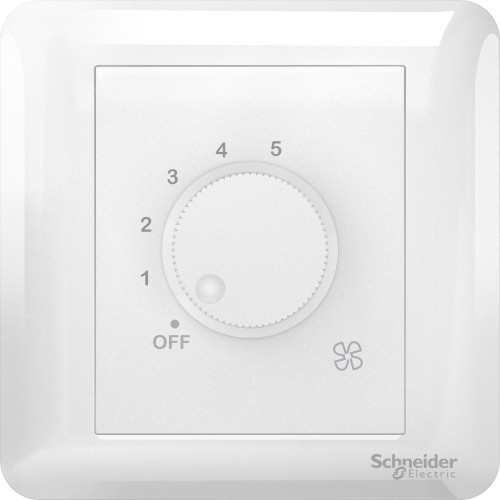

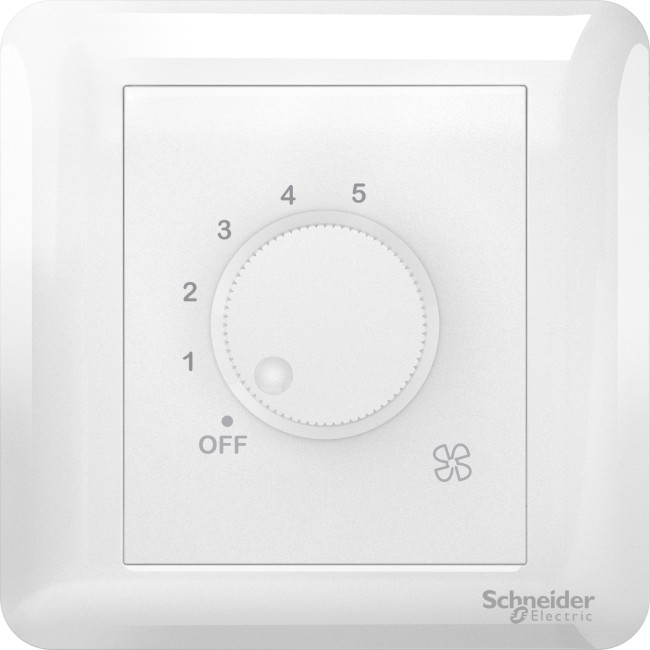

Schneider 100W 220V 1 Gang Fan Controller, White A3G31BFC_WE_G11
Model :A3G31BFC_WE_G11
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider 100W 220V 1 Gang Fan Controller, White A3G31BFC_WE_G11
Specifications
| Range | Affle Plus |
|---|---|
| Product or component type | Fan controller |
| Device presentation | Mechanism |
| Colour tint | White |
| Type of packing | Blister |
| Quantity per set | Set of 6 |
| Sale per indivisible quantity | 1 |
| Number of terminals | 2 |
| device mounting | Flush |
|---|---|
| Number of modules | 1 module 53.1 x 46 mm |
| Actuator | Rotary |
| Fixing mode | Clip-in |
| Surface finish | Glossy |
| Dimmer control | 150° rotary setting ON/OFF integrated |
| [Ie] rated operational current | 0.45 A |
| [Ue] rated operational voltage | 220 V AC 50/60 Hz |
| Screwdriver shape | Philips No 2 |
| Clamping connection capacity | 0.5...4 mm² for rigid cable(s) 0.5...4 mm² for stranded cable(s) 0.5...4 mm² for flexible cable(s) |
| Wire stripping length | 12…15 mm |
| Material | Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: cover Polycarbonate: button |
| Height | 86 mm |
| Width | 86 mm |
| Depth | 45.5 mm |
| Embedding depth | 25 mm |
| Product weight | 0.082 kg |
| Ambient air temperature for storage | -5…50 °C |
|---|---|
| Ambient air temperature for operation | 0…50 °C |
| Standards | IEC 60669-2-1 |
| IP degree of protection | IP20 |
| Environmental characteristic | UV resistant |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.5 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 117 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 19 cm |
| Package 2 Weight | 706 g |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 72 |
| Package 3 Height | 21 cm |
| Package 3 Width | 39.9 cm |
| Package 3 Length | 46.9 cm |
| Package 3 Weight | 8.972 kg |
