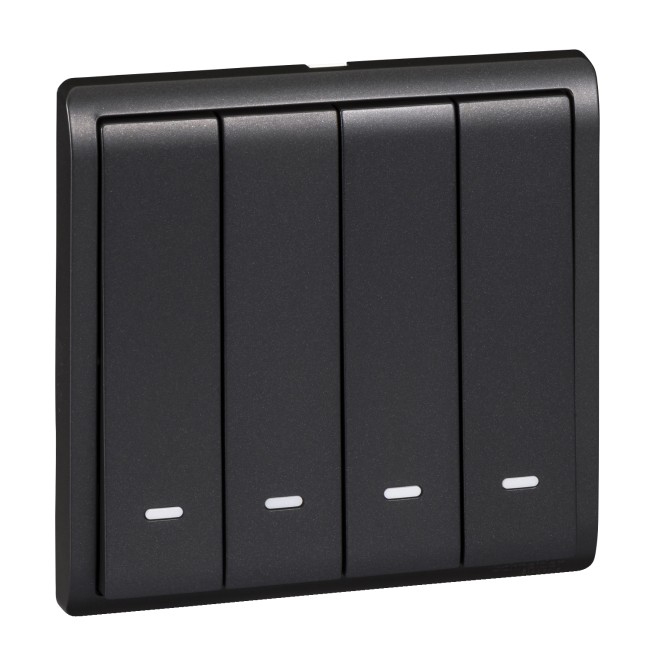

Schneider 10AX 250V 4Gang 2way switched with Fluorescent Locator,Matt Black E8234L2F_MB_G1
Model :E8234L2F_MB_G1
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider 10AX 250V 4Gang 2way switched with Fluorescent Locator,Matt Black E8234L2F_MB_G1
Specifications
| Range | Pieno |
|---|---|
| Product or component type | Switch |
| Device application | Control |
| Switch application | Switch |
| Load type | Resistive Fluorescent |
| Cover frame colour tint | Matt black |
| Device mounting | Flush Surface |
|---|---|
| Wiring device mounting | Surface Flush |
| Switch function | 2-way |
| Rated current | 10 AX at 250 V AC 50 Hz |
| Local signalling | Fluorescent (white) |
| Number of gangs | 4 gangs |
| Material | Polycarbonate: surround Polycarbonate: grid plate |
| Connections - terminals | Pillar terminals |
| Clamping connection capacity | 2 x 1.5 mm² for stranded cable(s) 2 x 2.5 mm² for solid cable(s) |
| Embedding depth | 23 mm |
| Width | 87 mm |
| Height | 87 mm |
| Depth | 23 mm |
| Ambient air temperature for operation | -5…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Standards | MS IEC 60669-1 IEC 60669-1 GB 16915.1 SS 227-1 BS EN 60669-1 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.59 cm |
| Package 1 Width | 8.7 cm |
| Package 1 Length | 8.7 cm |
| Package 1 Weight | 123.64 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 21 cm |
| Package 2 Width | 32.5 cm |
| Package 2 Length | 50 cm |
| Package 2 Weight | 7418.4 g |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 1200 |
| Package 3 Height | 84 cm |
| Package 3 Width | 82.5 cm |
| Package 3 Length | 100 cm |
| Package 3 Weight | 165368 g |
