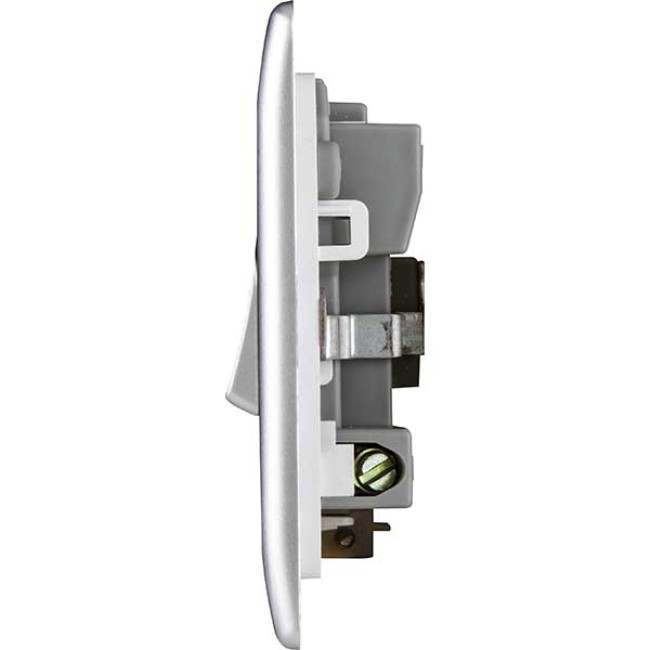

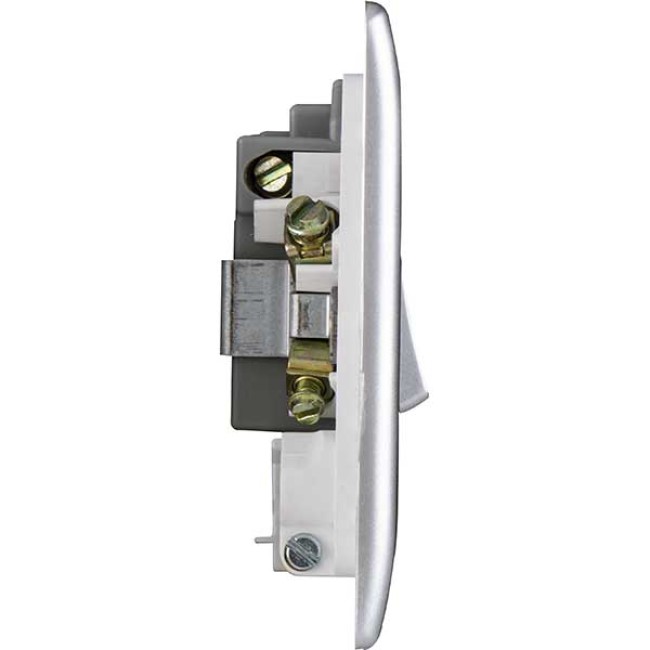

Schneider 13A Fused connection unit, Aluminium silver E8230FSG_AS_G1
Model :E8230FSG_AS_G1
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider 13A Fused connection unit, Aluminium silver E8230FSG_AS_G1
The Schneider 13A Fused Connection Unit in Aluminium Silver (Model E8230FSG_AS_G1) provides a stylish and reliable solution for integrating fused protection into electrical systems. Designed with a sleek aluminium silver finish, this unit combines functionality with modern aesthetics. It features a 13A fuse to safeguard electrical circuits from overloads and short circuits. The unit is suitable for use in both residential and commercial environments, offering durability and ease of use. Ideal for installations where a robust and visually appealing fused connection is required.
Features
Product Specifications
| Main | |
|---|---|
| Range | Pieno |
| Product or component type | Fused connection unit |
| Rated current | 13 A at 250 V AC 50 Hz |
| Load type | Resistive |
| Protection type | Fuse |
| Number of gangs | 1 gang |
| Cover frame colour tint | Aluminium silver |
| Complementary | |
| Wiring device mounting | Surface, Flush |
| Material | Polycarbonate: surround, Polycarbonate: grid plate |
| Clamping connection capacity | 1 x 2.5 mm² for solid cable(s), 2 x 4 mm² for stranded cable(s) |
| Connections - terminals | Folded terminal |
| Width | 87 mm |
| Height | 87 mm |
| Depth | 27.8 mm |
| Environment | |
| Ambient air temperature for operation | -5…40 °C |
| Relative humidity | 0…95 % |
| Standards | BS 1363 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.78 cm |
| Package 1 Width | 8.7 cm |
| Package 1 Length | 8.7 cm |
| Package 1 Weight | 118.876 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 21.0 cm |
| Package 2 Width | 32.5 cm |
| Package 2 Length | 50.0 cm |
| Package 2 Weight | 11887.6 g |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 2000 |
| Package 3 Height | 84.0 cm |
| Package 3 Width | 82.5 cm |
| Package 3 Length | 100.0 cm |
| Package 3 Weight | 254752.0 g |
