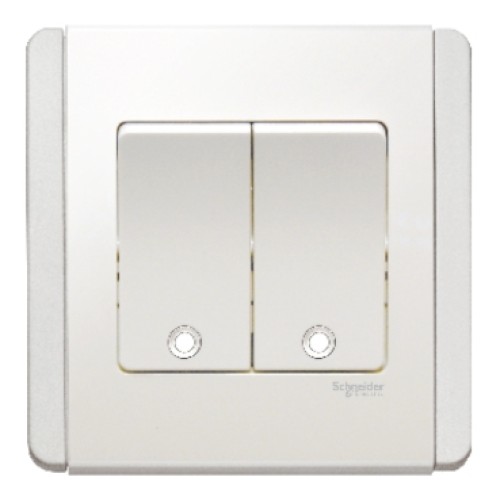

Schneider 2 Gang 2 Way Vertical Dolly Switch with White Fluorescent Indicator, White - E3032V2_FWWW
Model :E3032V2_FWWW
SKU :E3032V2_FWWW
7 days retun policy available
Cash on Delivery available
AED 32.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider 2 Gang 2 Way Vertical Dolly Switch with White Fluorescent Indicator, White - E3032V2_FWWW
The Schneider 2 Gang 2 Way Vertical Dolly Switch, model E3032V2_FWWW, combines functionality with a modern design. This switch features a vertical layout and is equipped with a white fluorescent indicator, making it easy to locate in low light conditions. Ideal for controlling multiple circuits from a single location, the 2-way configuration allows for flexibility in switching operations. The sleek white finish ensures it complements a variety of interior styles, providing both aesthetic appeal and practical utility.
Specifications
Schneider 2 Gang 2 Way Vertical Dolly Switch with White Fluorescent Indicator
| Specification | Details |
|---|---|
| Main | |
| Range | Neo |
| Product or component type | Control switch |
| Wiring device mounting | Flush, Surface |
| Switch function | 2-way |
| Switch application | Switch |
| Load type | Incandescent lamp, Fluorescent lamp, Resistive, Inductive |
| Bulb type | Fluorescent (white) |
| Colour tint | White |
| Complementary | |
| Rated current | 10 AX at 250 V AC 50/60 Hz |
| Number of gangs | 2 gangs vertical |
| Material | Brass: metal parts, Polycarbonate: plastic part, Steel: metal parts |
| Clamping connection capacity |
3 x 2.5 mm² for solid cable(s) 3 x 2.5 mm² for stranded cable(s) 4 x 1.5 mm² for solid cable(s) 4 x 1.5 mm² for stranded cable(s) |
| Connections - terminals | Pillar terminals |
| Width | 87 mm |
| Height | 87 mm |
| Embedding depth | 23.5 mm |
| Depth | 36 mm |
| Environment | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Environmental characteristic | Indoor use |
| Standards | |
| Standards | EN 60669-1 GB 16915.1 IEC 60669-1 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.6 cm |
| Package 1 Width | 8.7 cm |
| Package 1 Length | 8.7 cm |
| Package 1 Weight | 95 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 15 cm |
| Package 2 Width | 19 cm |
| Package 2 Length | 8 cm |
| Package 2 Weight | 774 g |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 21 cm |
| Package 3 Width | 31 cm |
| Package 3 Length | 50 cm |
| Package 3 Weight | 8740 g |
| Contractual warranty | |
| Warranty | 18 months |
