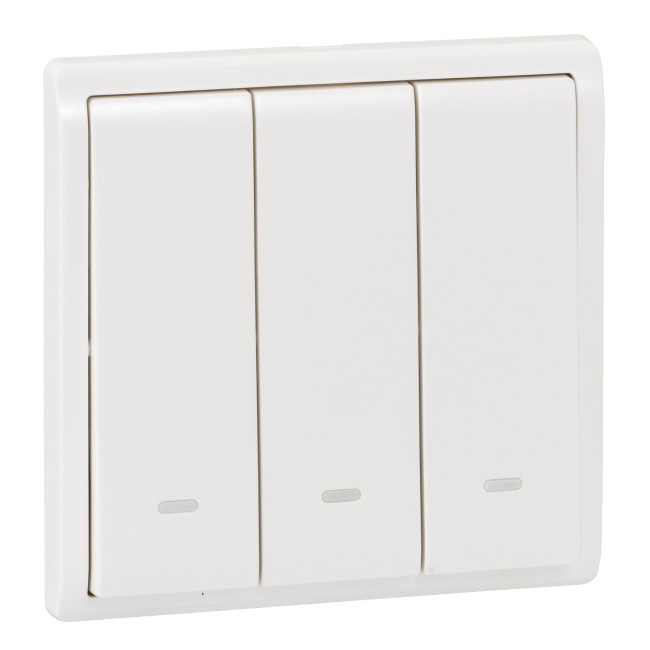

Schneider 20A-16AX 250V 3 Gang 2 way switch E8233L2F20
Model :E8233L2F20
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider 20A-16AX 250V 3 Gang 2 way switch E8233L2F20
Specifications
| Range | Pieno |
|---|---|
| Product or component type | Switch |
| Device application | Control |
| Load type | Resistive Fluorescent |
| device mounting | Flush Surface |
|---|---|
| Wiring device mounting | Surface Flush |
| Switch function | 2-way |
| Rated current | 20 A at 250 V AC 50 Hz |
| Local signalling | Fluorescent (white) |
| Number of gangs | 3 gangs |
| Material | Polycarbonate: surround Polycarbonate: grid plate |
| Connections - terminals | Pillar terminals |
| Clamping connection capacity | 2 x 1.5 mm² for stranded cable(s) 2 x 2.5 mm² for solid cable(s) |
| Embedding depth | 23 mm |
| Width | 87 mm |
| Height | 87 mm |
| Depth | 23 mm |
| Ambient air temperature for operation | -5…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Standards | BS EN 60669-1 IEC 60669-1 MS IEC 60669-1 GB 16915.1 SS 227-1 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.7 cm |
| Package 1 Width | 8.7 cm |
| Package 1 Length | 2.3 cm |
| Package 1 Weight | 0.001 g |
