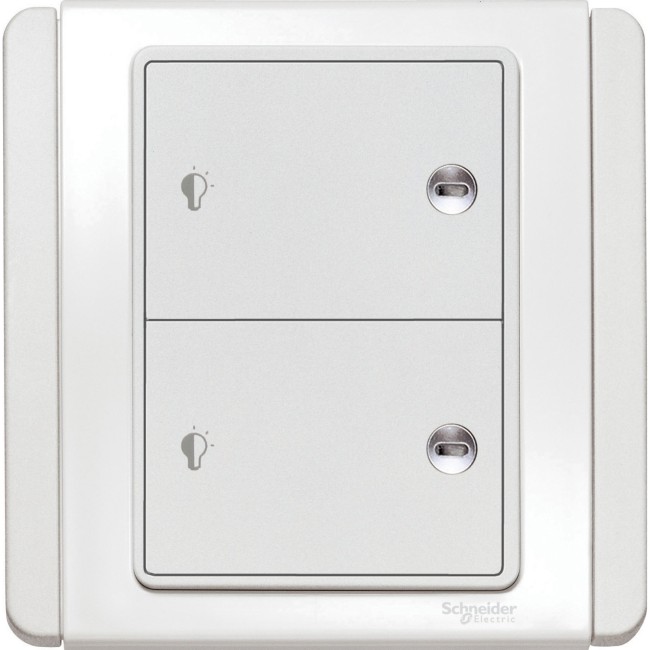

Schneider 400W 2 Gang Horizontal Dimming Switch with White LED, White E3032HD_EWWW
Model :E3032HD_EWWW
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
AED 280.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider 400W 2 Gang Horizontal Dimming Switch with White LED, White E3032HD_EWWW
Specifications
| Range | Neo C-Metro |
|---|---|
| Product or component type | Dimmer |
| Bulb type | LED, white |
| Number of gangs | 2 gangs |
| Colour tint | White |
| Wiring device mounting | Flush Surface |
|---|---|
| Power range | 40...400 VA 2 incandescent lamp 40...400 VA 2 low voltage halogen lamp with electronic transformer |
| [Ue] rated operational voltage | 220...240 V AC 50/60 Hz |
| Material | Brass: metal parts Polycarbonate: plastic part Steel: metal parts |
| Clamping connection capacity | 1 x 4 mm² for stranded cable(s) 2 x 4 mm² for stranded cable(s) 1 x 2.5 mm² for solid cable(s) 1 x 2.5 mm² for stranded cable(s) 2 x 2.5 mm² for solid cable(s) 2 x 2.5 mm² for stranded cable(s) 3 x 2.5 mm² for solid cable(s) 3 x 2.5 mm² for stranded cable(s) |
| Connections - terminals | Pillar terminals |
| Width | 87 mm |
| Height | 87 mm |
| Depth | 26 mm |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Environmental characteristic | Indoor use |
| Standards | GB 16915.2 IEC 60669-2-1 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.8 cm |
| Package 1 Width | 8.7 cm |
| Package 1 Length | 8.7 cm |
| Package 1 Weight | 139.055 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 19 cm |
| Package 2 Weight | 1.112 kg |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 21 cm |
| Package 3 Width | 32.5 cm |
| Package 3 Length | 50 cm |
| Package 3 Weight | 11124.4 g |
| Warranty | 18 months |
|---|
