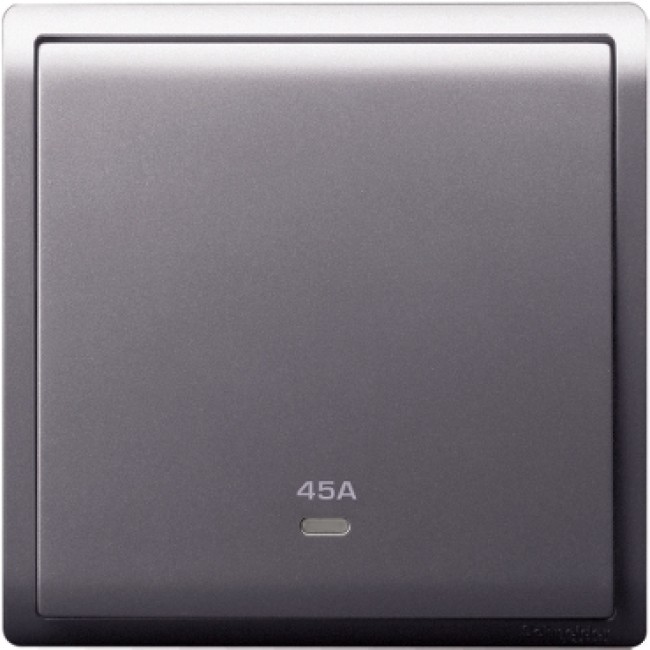

Schneider 45A 250V 1 Gang Double Pole Switch with Neon, Lavender Silver - E8231D45N_LS
Model :E8231D45N_LS
SKU :
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider 45A 250V 1 Gang Double Pole Switch with Neon, Lavender Silver - E8231D45N_LS
The Schneider 45A Double Pole Switch (E8231D45N_LS) offers robust performance for high-power applications. Designed for 45A at 250V, this 1-gang switch provides reliable control and safety for electrical systems. It features a neon indicator to signal when the switch is on, enhancing visibility and usability. The stylish lavender silver finish adds a modern touch to any setting, making it a versatile choice for both residential and commercial installations.
Specifications
Product Specifications
| Main | |
|---|---|
| Range | Pieno |
| Product or component type | Switch |
| Switch application | Switch |
| Load type | Resistive Fluorescent |
| Cover frame colour tint | Lavender silver |
| Complementary | |
| Device mounting | Flush Surface |
| Wiring device mounting | Flush Surface |
| Rated current | 45 A at 250 V AC 50 Hz |
| Local signalling | Neon |
| Number of gangs | 1 gang |
| Material | Polycarbonate: surround Polycarbonate: grid plate |
| Connections - terminals | Pillar terminals |
| Clamping connection capacity | 1 x 16 mm² for solid cable(s) 1 x 10 mm² for stranded cable(s) |
| Embedding depth | 23 mm |
| Width | 87 mm |
| Height | 87 mm |
| Depth | 33.8 mm |
| Environment | |
| Ambient air temperature for operation | -5…40 °C |
| Relative humidity | 0…95 % |
| Standards | GB 16915.1 MS IEC 60669-1 BS EN 60669-1 SS 227-1 IEC 60669-1 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.6 cm |
| Package 1 Width | 8.7 cm |
| Package 1 Length | 8.7 cm |
| Package 1 Weight | 185.45 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 19 cm |
| Package 2 Weight | 1.393 kg |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 21 cm |
| Package 3 Width | 32.5 cm |
| Package 3 Length | 50 cm |
| Package 3 Weight | 13.832 kg |
| Warranty | |
| Warranty | 18 months |
