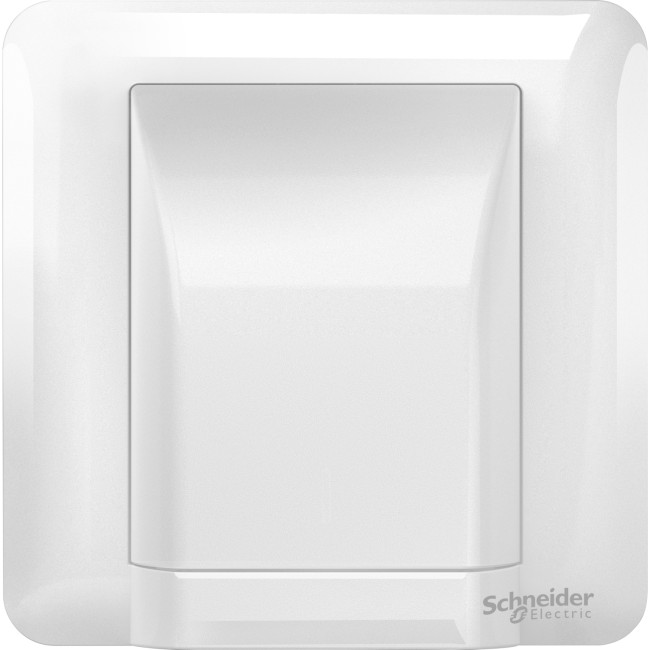

Schneider 45A 250V Connection Unit, White A3G554_WE_G11
Model :A3G554_WE_G11
SKU :A3G554_WE_G11
This item cannot be returned or exchanged
Cash on Delivery available
AED 19.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider 45A 250V Connection Unit, White A3G554_WE_G11
Specifications
| Range | Affle Plus |
|---|---|
| Product or component type | Connection unit |
| Device presentation | Complete mechanism |
| Cover frame colour tint | White |
| Material | Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: cover |
|---|---|
| device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Embedding depth | 35 mm |
| Rated current | 45 A at 250 V AC, resistive |
| Network frequency | 50 Hz |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Pillar terminal Screw terminal |
| Terminal identifier | L in N in L out N out Earth |
| Tightening torque | 0.4 N.m |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 43.8 mm |
| Product weight | 0.0126 kg |
| Standards | BS 5733 |
|---|---|
| Ambient air temperature for operation | -5…40 °C |
| Relative humidity | 0…95 % |
| Environmental characteristic | Indoor use |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.4 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 132 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 19 cm |
| Package 2 Weight | 796 g |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 1152 |
| Package 3 Height | 100 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 160832 g |
