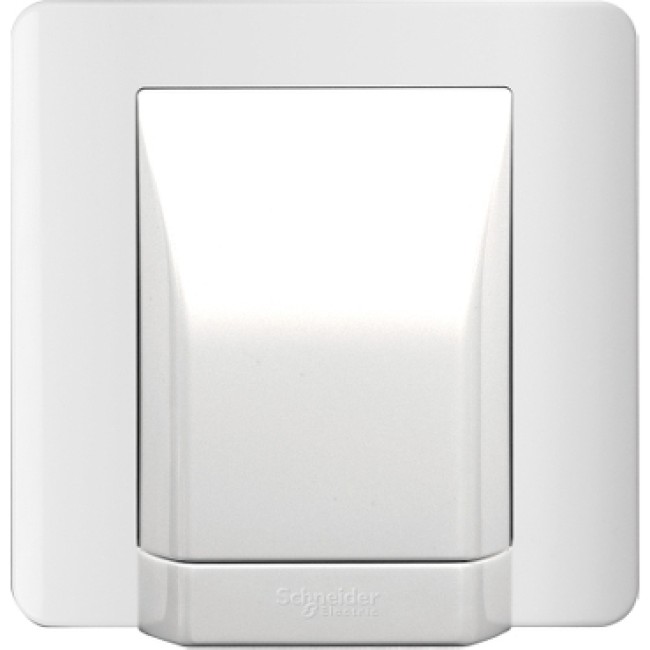

Schneider 45A connection unit White Plate+White Surround E84554-WW
Model :E84554-WW
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider 45A connection unit White Plate+White Surround E84554-WW
Specifications
| Range | ZENcelo |
|---|---|
| Product or component type | Connection unit |
| Colour tint | White |
| Load type | Resistive Inductive |
| Cover frame colour tint | White |
| Width | 87 mm |
|---|---|
| Height | 87 mm |
| Depth | 30 mm |
| Wiring device mounting | Surface Flush |
| Rated current | 25 A at 250 V AC 50 Hz |
| Material | Polycarbonate + 20 % FG: grid plate Polycarbonate: base Polycarbonate: surround |
| Contacts material | Contact: brass and phosphor bronze |
| Connections - terminals | Pillar terminals |
| Number of cables | 1 cable(s) 16 mm² |
| Ambient air temperature for operation | -5…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Environmental characteristic | UV resistant indoor use |
| Operating altitude | 2000 m |
| Standards | BS 5733 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.7 cm |
| Package 1 Width | 8.7 cm |
| Package 1 Length | 3 cm |
| Package 1 Weight | 0.001 g |
