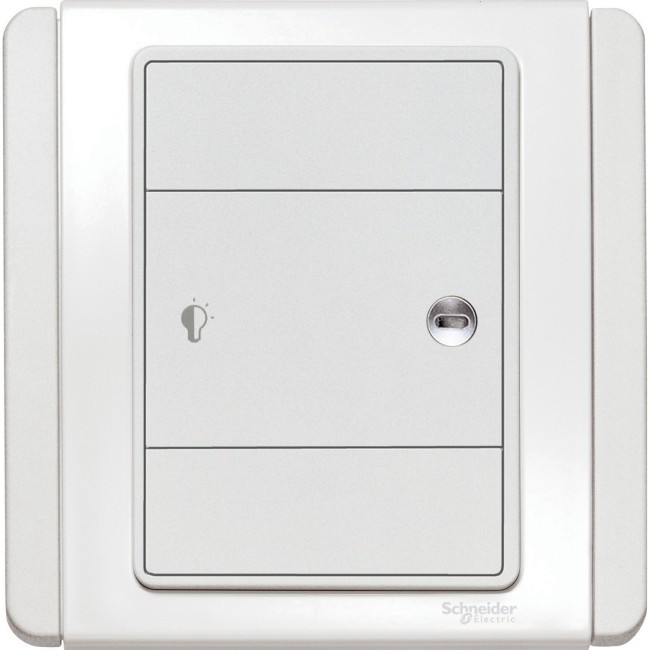

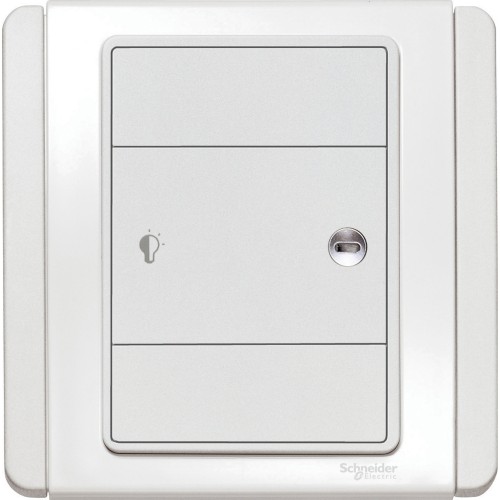

Schneider 600W 1 Gang Horizontal Dimming Switch with White LED, White E3031HD_EWWW
Model :E3031HD_EWWW
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider 600W 1 Gang Horizontal Dimming Switch with White LED, White E3031HD_EWWW
Specifications
| Range | Neo C-Metro |
|---|---|
| Product or component type | Dimmer |
| Bulb type | LED, white |
| Number of gangs | 1 gang |
| Colour tint | White |
| Wiring device mounting | Flush Surface |
|---|---|
| Power range | 40...600 VA incandescent lamp 40...600 VA low voltage halogen lamp with electronic transformer |
| [Ue] rated operational voltage | 220...240 V AC 50/60 Hz |
| Material | Brass: metal parts Polycarbonate: plastic part Steel: metal parts |
| Clamping connection capacity | 1 x 4 mm² for stranded cable(s) 2 x 4 mm² for stranded cable(s) 1 x 2.5 mm² for solid cable(s) 1 x 2.5 mm² for stranded cable(s) 2 x 2.5 mm² for solid cable(s) 2 x 2.5 mm² for stranded cable(s) 3 x 2.5 mm² for solid cable(s) 3 x 2.5 mm² for stranded cable(s) |
| Connections - terminals | Pillar terminals |
| Width | 87 mm |
| Height | 87 mm |
| Depth | 26 mm |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Environmental characteristic | Indoor use |
| Standards | GB 16915.2 IEC 60669-2-1 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 21.0 cm |
| Package 1 Width | 32.5 cm |
| Package 1 Length | 50.0 cm |
| Package 1 Weight | 135.225 g |
| Warranty | 18 months |
|---|
