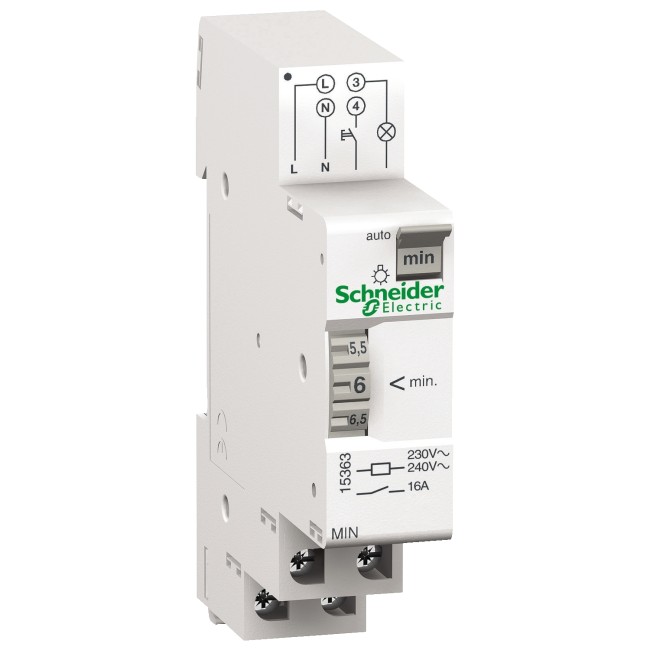

Schneider Acti 9 - MIN - electromechanical timer - adjustable from 1 to 7 minutes 15363
MIN electromechanical staircase timers Width of 18mm (2 modules of 9mm) Closing and then opening of a contact in a determined time [...]
Model :15363
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
only 1 item(s) remaining
AED 149.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider Acti 9 - MIN - electromechanical timer - adjustable from 1 to 7 minutes 15363
MIN electromechanical staircase timers Width of 18mm (2 modules of 9mm) Closing and then opening of a contact in a determined time Adjustable time delay 1 to 7 minutes Control circuit with connected standard, or luminous 230V push buttons Manual override is possible
Specifications
| range of product | Acti9 |
|---|---|
| Product name | Acti9 MIN |
| device short name | MIN |
| product or component type | Electromechanical timer |
| Colour tint | White (RAL 9003) |
| Device application | Building |
|---|---|
| Load type | Parallel-corrected fluorescent tube 14 x 40 W 4.7 µF Parallel-corrected fluorescent tube 10 x 58 W 7 µF Parallel-corrected fluorescent tube 3.0 x 100 W 18 µF 230 V AC halogen lamp 2300 W 230 V AC incandescent lamp 2300 W Fluocompact lamp 2300 VA Compact fluorescent lamp 21 x 7 W Compact fluorescent lamp 13 x 11 W Compact fluorescent lamp 10 x 15 W Compact fluorescent lamp 7 x 20 W LED lamp < 2 W 30 W LED lamp > 2 W 300 W |
| Power consumption in VA | 1 VA |
| Maximum switching current | 16 A - 230 V AC pf = 1 |
| [Ue] rated operational voltage | 230 V AC at 50 Hz |
| Time delay | Adjustable from 1 to 7 minutes |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Connections - terminals | Screw terminals - <= 6 mm² |
| width | 18 mm |
| height | 83 mm |
| depth | 68 mm |
| net weight | 84 g |
| Ambient air temperature for operation | -10…50 °C |
|---|---|
| IP degree of protection | IP20 B |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2 cm |
| Package 1 Width | 7 cm |
| Package 1 Length | 9.9 cm |
| Package 1 Weight | 82 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 7.5 cm |
| Package 2 Width | 10.5 cm |
| Package 2 Length | 22 cm |
| Package 2 Weight | 865 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 110 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 10.033 kg |
| Warranty | 18 months |
|---|
