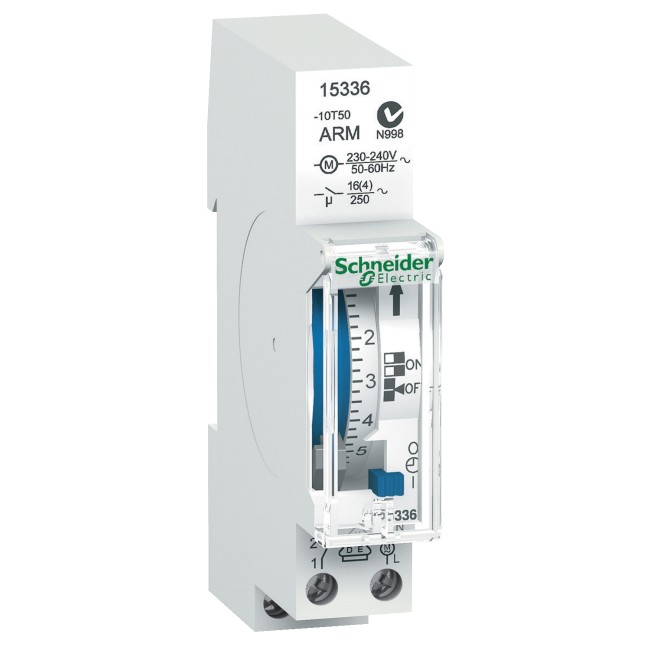

Schneider Acti9, IH, mechanical time switch, 24 h, 150 h memory 15336
IH mechanical time switch Width of 18mm (2 modules of 9mm) Automatically switches On and Off loads according to the program entered [...]
Model :15336
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Acti9, IH, mechanical time switch, 24 h, 150 h memory 15336
IH mechanical time switch Width of 18mm (2 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on daily level Swiching cycle is 24 h (daily) The minimum time between 2 switching operations is 15 minutes with the number of 48 On and 48 Off Savings on mains cut off with battery reserve: 100 hours Manual override is possible 1 channel output
Specifications
| range of product | Acti9 |
|---|---|
| Product name | Acti9 IH |
| Device short name | IH |
| Product or component type | Mechanical time switch |
| Number of channels | 1 |
| Function available | Manual time changeover |
| Device application | Building |
|---|---|
| Load type | Parallel-corrected fluorescent tube 5 x 58 W 4.7 µF Parallel-corrected fluorescent tube 7 x 40 W 7 µF Parallel-corrected fluorescent tube 2 x 100 W 18 µF 230 V AC halogen lamp 1000 W 230 V AC incandescent lamp 1000 W Fluocompact lamp 700 VA Compact fluorescent lamp 150 W LED lamp < 2 W 30 W LED lamp > 2 W 300 W |
| cycle duration | 24 h |
| Maximum number of switchings | 48 on - 48 off |
| Minimum interval duration | 15 min |
| Type of setting | Manual time changeover |
| Measurement accuracy | +/- 1 s/day 20 °C |
| Power consumption in W | 0.5 W |
| Maximum switching current | 16 A - 250 V AC pf = 1 4 A - 250 V AC pf = 0.6 |
| [Ue] rated operational voltage | 230...240 V AC at 50...60 Hz |
| Battery life | 10 year(s) |
| Backup time | 150 h time and program saving |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Colour tint | White (RAL 9003) |
| Connections - terminals | Screw terminals |
| Width | 18 mm |
| Height | 90 mm |
| Depth | 66 mm |
| Net weight | 0.101 kg |
| Ambient air temperature for operation | -10…50 °C |
|---|---|
| IP degree of protection | Terminals: IP20 B |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.400 cm |
| Package 1 Width | 6.800 cm |
| Package 1 Length | 10.000 cm |
| Package 1 Weight | 87.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.350 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 1600 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 146.192 kg |
| Warranty | 18 months |
|---|
