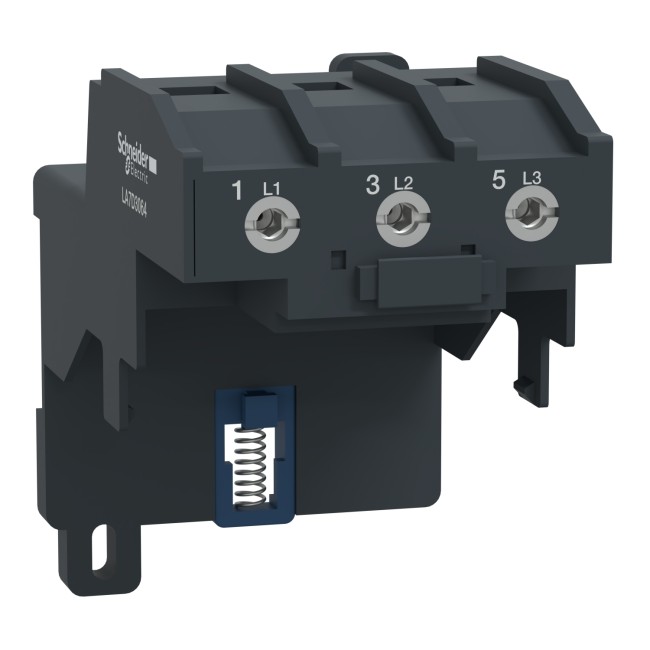

Schneider Adapter terminal block, TeSys LRD, for separate mounting of LR2D3… LR3D3… LA7D3064
TeSys LRD terminal block, for thermal overload relays LRD33**, LR3D33**, LR2D35**. To be used for a separate mounting of [...]
Model :LA7D3064
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Adapter terminal block, TeSys LRD, for separate mounting of LR2D3… LR3D3… LA7D3064
TeSys LRD terminal block, for thermal overload relays LRD33**, LR3D33**, LR2D35**. To be used for a separate mounting of overload relay and contactor. It provides top connections by screw clamp terminals, clip-on fixing on 35 mm DIN-rail or fixing by screws. Green Premium compliant (RoHS/REACh).
Specifications
| Range | TeSys |
|---|---|
| Product or component type | Terminal block |
| Device short name | LA7D |
| Product compatibility | LR2D35.. LR3D35.. LR3D33.. LRD33.. |
| Quantity per set | Set of 1 |
| accessory / separate part category | Connection accessory |
| Connections - terminals | Screw terminals |
|---|---|
| height | 104 mm |
| Width | 75 mm |
| Depth | 121 mm |
| Net weight | 0.37 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.500 cm |
| Package 1 Width | 10.500 cm |
| Package 1 Length | 13.500 cm |
| Package 1 Weight | 251.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 33 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 9.148 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 132 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 50.195 kg |
| Warranty | 18 months |
|---|
