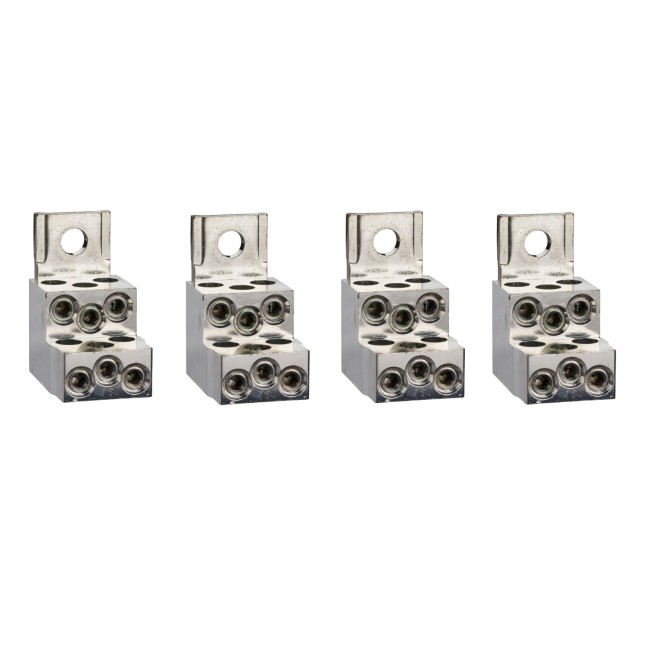

Schneider aluminium bare cable connectors, ComPact NSX, for 6 cables 1.5 mm² to 35 mm², 250 A, set of 4 parts LV429249
These accessories are aluminium bare cable connectors for Compact NSX 100/160/250. These connectors can receive 6 copper or aluminium cables from 1.5mm² to 35[...]
Model :LV429249
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider aluminium bare cable connectors, ComPact NSX, for 6 cables 1.5 mm² to 35 mm², 250 A, set of 4 parts LV429249
These accessories are aluminium bare cable connectors for Compact NSX 100/160/250. These connectors can receive 6 copper or aluminium cables from 1.5mm² to 35mm². The connectors are screwed directly on the device terminals or right angle terminal extensions. The rated current is up to 250 A. They are sold by set of 4 parts.
Specifications
| Product or component type | Bare cable connector |
|---|---|
| accessory / separate part category | Connection accessory |
| Range compatibility | ComPacT new generation (ComPacT NSX100 new generation) ComPacT new generation (ComPacT NSX160 new generation) ComPacT new generation (ComPacT NSX250 new generation) ComPacT new generation (ComPacT NSX DC new generation) ComPact Compact NSX100 ComPact Compact NSX160 ComPact Compact NSX250 ComPact Compact NSX100 DC ComPact Compact NSX160 DC ComPact Compact NSX250 DC EasyPact (EasyPact CVS100) EasyPact (EasyPact CVS160) EasyPact (EasyPact CVS250) ComPact Compact INS100...250 ComPact Compact INV100...250 |
| Poles description | 4P |
| Quantity per set | Set of 4 |
| [In] rated current | 250 A |
|---|---|
| Conductor material | Aluminium |
| Connections - terminals | Screw terminal6 cable(s) 1.5…35 mm² |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.5 cm |
| Package 1 Width | 11.5 cm |
| Package 1 Length | 16.2 cm |
| Package 1 Weight | 466.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 14.647 kg |
| Warranty | 18 months |
|---|
