Schneider Anti Harmonic detuned reactor 25kvar 190Hz (3.8) 7% 50Hz 400V LVR07250A40T

The VarPlus detuned reactor are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. [...]
Model :LVR07250A40T
SKU :
Assured

No Return This item cannot be returned or exchanged
Cash on Delivery Cash on Delivery available
only  4 item(s) remaining
AED 1,260.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries

100%
- +
Bulk Order

  •  Condition: New

Description for Schneider Anti Harmonic detuned reactor 25kvar 190Hz (3.8) 7% 50Hz 400V LVR07250A40T

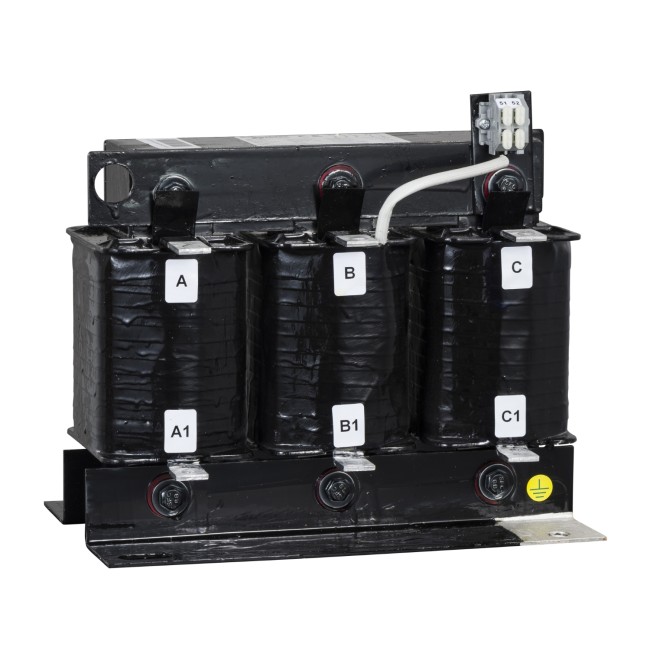

The VarPlus detuned reactor are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and Reactors are configured in Series resonant circuit. Tuned so that the series resonant frequency is below the lowest harmonic frequency present in the system. This reactor is rated for 25 kVar output power with 3.8/190 Hz tuning order at 400V AC at 50 Hz. Relative impedance, 7 %. This component meet the standards IEC 60068. This component require a forced convection, a fan need to be added. The case dimensions are 220mm in height, 240mm in width and 160mm in depth. For a product weight of 15 kg.

Specifications


Main
RangePowerLogic
Device short nameDR
Product or component typeDetuned reactor
Network frequency50 Hz
Reactive power rating25 kvar for 400 V AC 50 Hz
Network rated voltage400 V AC 50 Hz
Tuning order3.8 - 190 Hz - 7 % - 50 Hz
Complementary
power losses (max)200 W
Value of inductance1.499 mH
Inductance tolerance- 5 % to 5 % per phase
Fundamental current rating36.1 A
RMS current rating39 A
Electrical insulation classClass H
[Ui] rated insulation voltage1.1 kV
Dielectric test voltage4 kV 50 Hz 1 minute
[Imp] maximum permanent current1.2 x I1
Harmonic current spectrum3.7 % x I3
38.2 % x I5
13.6 % x I7
4.9 % x I11
dynamic withstand current2.2 x Isc
[Ith] conventional free air thermal current2 A at 250 V AC 50 Hz
Type of installationIndoor installation
Type of coolingForced convection
Connections - terminalsPad terminal
Fixing center200 x 125 mm
Height220 mm
Width240 mm
Depth160 mm
Net weight15 kg
Environment
StandardsIEC 60068
IP degree of protectionIP00
Operating altitude<= 2000 m
Ambient air temperature for operation0…55 °C at <= 1000 m
0…50 °C at > 1000...2000 m
Average ambient air temperature for operation50 °C at <= 1000 m (average over 24 hours)
40 °C at <= 1000 m (average over 1 year)
45 °C at > 1000...2000 m (average over 24 hours)
35 °C at > 1000...2000 m (average over 1 year)
Climatic withstandRelative humidity: 20...80 %
Salt mist (400 V/50 Hz) : 250 hours
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height25.0 cm
Package 1 Width29.5 cm
Package 1 Length31.0 cm
Package 1 Weight14.45 kg
Unit Type of Package 2P12
Number of Units in Package 224
Package 2 Height105.0 cm
Package 2 Width80.0 cm
Package 2 Length120.0 cm
Package 2 Weight400.0 kg

Features
