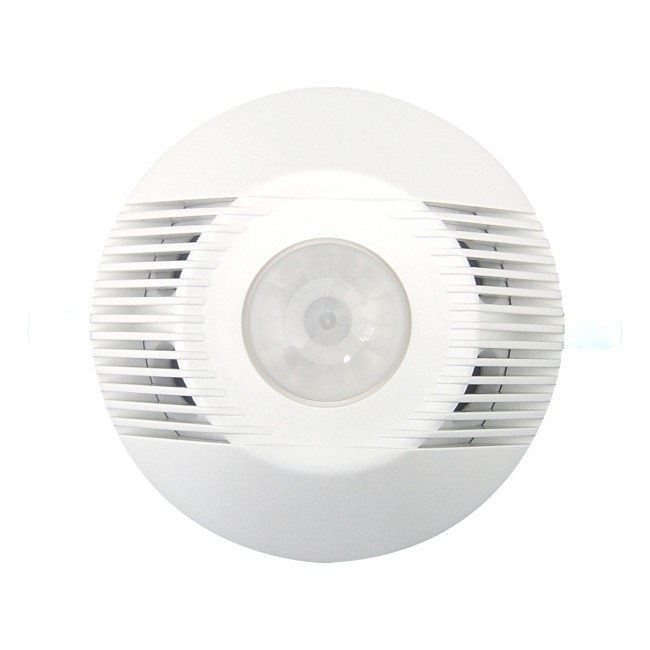

Schneider ARGUS Presence Dual-Tech - 1ch CCT551011
This Argus motion sensor is combining PIR and ultrasonic technologies to ensure maximum effectiveness. The detection range of the PIR part [...]
Model :CCT551011
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider ARGUS Presence Dual-Tech - 1ch CCT551011
This Argus motion sensor is combining PIR and ultrasonic technologies to ensure maximum effectiveness. The detection range of the PIR part of this motion sensor is 8m diameter with an angle of 360° ( at 2.5m height). The detection range of the ultrasonic part of this motion sensor is 10 x 16m ( at 2.5m installation height).
Specifications
| Range of product | ARGUS standard movement detector |
|---|---|
| Range | ARGUS |
| product or component type | Presence detector with IR receiver |
| Load type | LED lighting: : 100 W Incandescent lamps: : 2000 W - 230 V Halogen lamp: : 1000 W - 230 V Halogen lamp with standard electronic transformer: 1000 VA Halogen lamp with standard ferromagnetic transformer: 1000 VA Fluorescent tube: 900 VA, 100 µF |
| Colour tint | White |
| Network frequency | 50/60 Hz |
|---|---|
| Input function | Switch External trigger |
| Output voltage | 220...250 V |
| Output current | 10 A |
| Number of channels | 2 |
| Control type | Movement sensor |
| Function available | Switching, toggling, dimming |
| Light intensity adjustment | 10…1000 lux |
| Horizontal detection angle | 360 ° |
| Mounting height | 2.5 m |
| IP degree of protection | IP20 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.2 cm |
| Package 1 Width | 11.7 cm |
| Package 1 Length | 17.7 cm |
| Package 1 Weight | 462 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 40 cm |
| Package 2 Width | 31 cm |
| Package 2 Length | 50 cm |
| Package 2 Weight | 10.29 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 160 |
| Package 3 Height | 95 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 88.92 kg |
