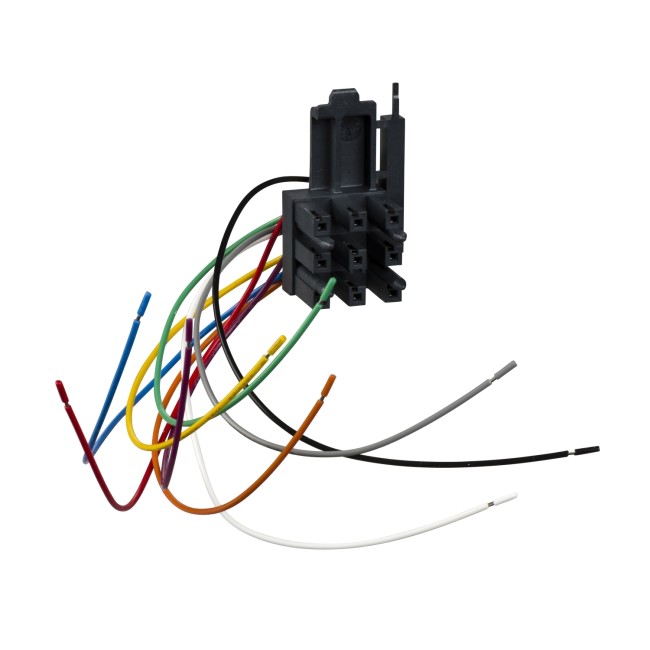

Schneider automatic auxiliary connector, moving part, ComPact NSX 100/160/250, for circuit breaker, 1 to 9 wires LV429274
This is the moving part of an automatic connector for Compact NSX 100/160/250 auxiliaries connection. It is adapted for plug-in base or [...]
Model :LV429274
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider automatic auxiliary connector, moving part, ComPact NSX 100/160/250, for circuit breaker, 1 to 9 wires LV429274
This is the moving part of an automatic connector for Compact NSX 100/160/250 auxiliaries connection. It is adapted for plug-in base or withdrawable circuit breakers. It is the moving part connected to the circuit breaker via a dedicated support. Compact NSX 100/160/250 can be equipped with 2 automatic connectors with 9 wires each.
Specifications
| Device short name | 9-wire moving connector |
|---|---|
| Product or component type | Connector kit |
| Device application | Wiring |
| Range compatibility | ComPacT new generation (ComPacT NSX100 new generation) ComPacT new generation (ComPacT NSX160 new generation) ComPacT new generation (ComPacT NSX250 new generation) ComPact (ComPact NSX100) ComPact (ComPact NSX160) ComPact (ComPact NSX250) ComPacT new generation (ComPacT NSX DC new generation) NSX100 DC ComPacT new generation (ComPacT NSX DC new generation) NSX160 DC ComPacT new generation (ComPacT NSX DC new generation) NSX250 DC ComPact Compact NSX100 DC ComPact Compact NSX160 DC ComPact Compact NSX250 DC |
| Total number of wires | 9 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.0 cm |
| Package 1 Width | 6.0 cm |
| Package 1 Length | 7.6 cm |
| Package 1 Weight | 52.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 124 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 6.888 kg |
| Warranty | 18 months |
|---|
