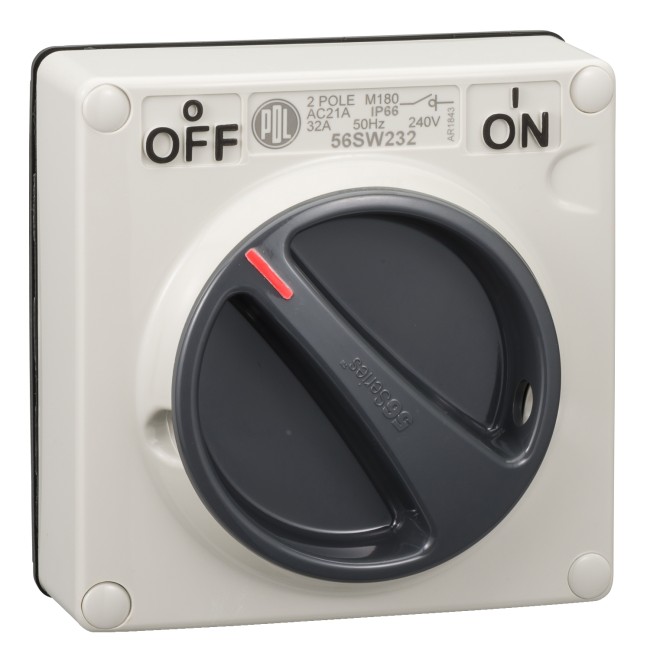

Schneider Clipsal - 56 Series, Surface Switch, 1 Gang, 2 Pole, 500VAC, 32A 56SW232-GY
Model :56SW232-GY
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Clipsal - 56 Series, Surface Switch, 1 Gang, 2 Pole, 500VAC, 32A 56SW232-GY
Specifications
| Range of product | Series 56 |
|---|---|
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | Switch |
| Device presentation | Basic element with full cover plate |
| Device application | Control |
| Colour | Cover: grey |
| handle colour | Grey |
| Suitability for isolation | Yes |
| Switch function | 2-pole |
|---|---|
| Poles description | 2P |
| [Icm] rated short-circuit making capacity | 1 kA |
| Control type | Rotary knob |
| Number of poles | 2 |
| Device mounting | Surface |
| Fixing mode | By screws |
| Material | PC (polycarbonate) |
| Tightening torque | 0.8 N.m |
| Local signalling | without |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| Rated current | 32 A |
| Marking | ON-OFF |
| Marking location | Marking on surface |
| Height | 107 mm |
| Width | 101 mm |
| Depth | 108 mm |
| Net weight | 0.68 kg |
| Breaking capacity | 32 kA |
| Targeted country | Australia |
| Rotary handle padlocking | 2 padlocks 8 mm |
| [Icw] rated short-time withstand current | 1.2 kA for 1 s |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Motor M-rating AS3133 | M180 at 250 V |
| Ambient air temperature for operation | -25…75 °C |
|---|---|
| IP degree of protection | IP66 conforming to AS 60529 |
| Standards | AS/NZS 3133 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.0 cm |
| Package 1 Width | 10.5 cm |
| Package 1 Length | 10.5 cm |
| Package 1 Weight | 569.0 g |
