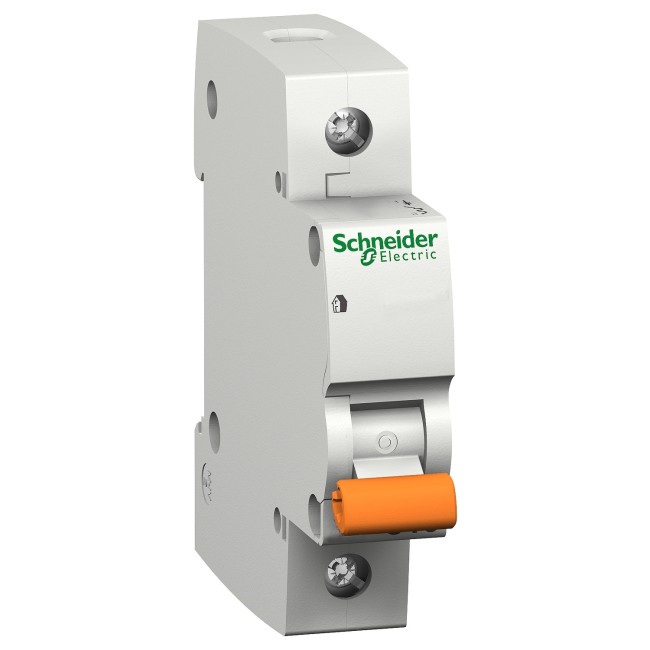

Schneider Domae MCB - miniature circuit-breaker - 1P - 16A - C Curve - 6000A 17046

This Domae product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected poles and 16[...]
Model :17046
SKU :
Assured

No Return This item cannot be returned or exchanged
Cash on Delivery Cash on Delivery available
AED 10.50
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries

100%
- +
Bulk Order

  •  Condition: New

Description for Schneider Domae MCB - miniature circuit-breaker - 1P - 16A - C Curve - 6000A 17046


This Domae product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected poles and 16A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 230VAC conforming to EN/IEC 60898-1 standard. This product complies with IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. The fault tripping is indicated on the front panel by the position of the handle (O-I engraved). It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 230VAC. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 81mm x (D) 78.5mm. The weight is 0.095kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 70°C.

Specifications


Main
RangeDomae
Product or component typeMiniature circuit-breaker
Device short nameDomae MCB
Device applicationDistribution
Poles description1P
Number of protected poles1
[In] rated current16 A
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Breaking capacityIcn 6000 A
Complementary
Network frequency50/60 Hz
[Ue] rated operational voltage230 V AC 50/60 Hz
Magnetic tripping limit5...10 x In
[Ics] rated service breaking capacity6000 kA 100 % x Icn conforming to EN/IEC 60898-1
Contact position indicatorYes
Control typeToggle
Local signallingFault trip
Mounting modeClip-on
Mounting supportDIN rail
Comb busbar and distribution block compatibilityYES
Connection pitch18 mm between devices
9 mm pitches2
Height81 mm
Width18 mm
Depth78.5 mm
Net weight0.095 kg
ColourWhite
Mechanical durability20000 cycles
Connections - terminalsTunnel type terminals (top or bottom) - 1...25 mm² - rigid
Tunnel type terminals (top or bottom) - 1...16 mm² - flexible
Wire stripping length14 mm for top or bottom connection
Tightening torque2 N.m top or bottom
earth-leakage protectionWithout
Environment
StandardsIEC 60529
IEC 60068-1
IEC 60898-1
IP degree of protectionIP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
Tropicalisation2 conforming to IEC 60068-1
Relative humidity95 % at 55 °C
Ambient air temperature for operation-25…60 °C
Ambient air temperature for storage-40…70 °C
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height1.800 cm
Package 1 Width7.500 cm
Package 1 Length8.500 cm
Package 1 Weight96.000 g
Unit Type of Package 2BB1
Number of Units in Package 212
Package 2 Height8.000 cm
Package 2 Width8.800 cm
Package 2 Length22.000 cm
Package 2 Weight1.192 kg
Unit Type of Package 3S03
Number of Units in Package 3144
Package 3 Height30.000 cm
Package 3 Width30.000 cm
Package 3 Length40.000 cm
Package 3 Weight14.791 kg

Features
