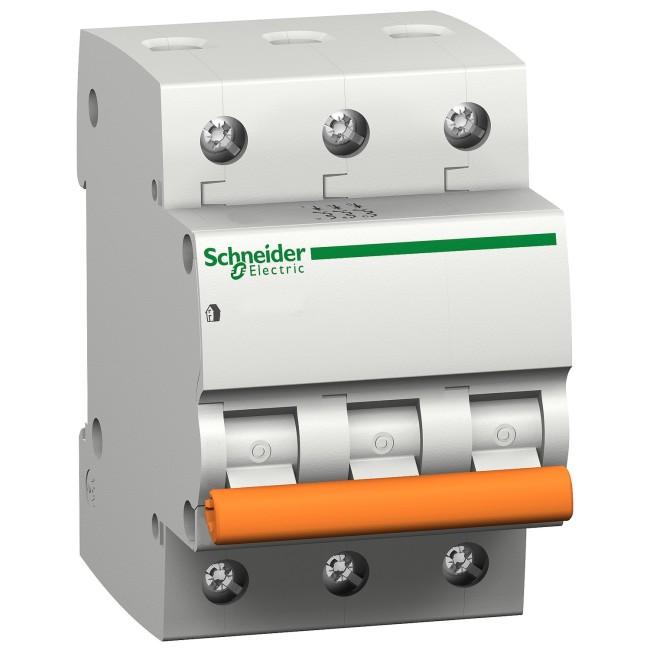

Schneider Domae MCB - miniature circuit-breaker - 3P - 6A - C Curve - 6000A 17078

This Domae product is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles and 6[...]
Model :17078

No Return This item cannot be returned or exchanged
Cash on Delivery Cash on Delivery available
AED 46.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries

- +
Bulk Order

  •  Condition: New

Description for Schneider Domae MCB - miniature circuit-breaker - 3P - 6A - C Curve - 6000A 17078

This Domae product is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles and 6A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 400VAC conforming to EN/IEC 60898-1 standard. This product complies with IEC 60898-1 standard. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The fault tripping is indicated on the front panel by the position of the handle (O-I engraved). It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 400VAC. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 81mm x (D) 78.5mm. The weight is 0.285kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 70°C.


Product or component typeMiniature circuit-breaker
Device short nameDomae MCB
Device applicationDistribution
Poles description3P
Number of protected poles3
[In] rated current6 A
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Breaking capacityIcn 6000 A
Network frequency50/60 Hz
[Ue] rated operational voltage400 V AC 50/60 Hz
Magnetic tripping limit5...10 x In
[Ics] rated service breaking capacity6000 kA 100 % x Icn conforming to EN/IEC 60898-1
[Ui] rated insulation voltage500 V
[Uimp] rated impulse withstand voltage4 kV
Contact position indicatorYes
Control typeToggle
Local signallingFault trip
Mounting modeClip-on
Mounting supportDIN rail
Comb busbar and distribution block compatibilityYES
Connection pitch18 mm between phases
9 mm pitches6
Height81 mm
Width54 mm
Depth78.5 mm
Net weight0.285 kg
Mechanical durability20000 cycles
Connections - terminalsTunnel type terminals (top or bottom) - 1...25 mm² - rigid
Tunnel type terminals (top or bottom) - 1...16 mm² - flexible
Wire stripping length14 mm for top or bottom connection
Tightening torque2 N.m top or bottom
earth-leakage protectionWithout
IP degree of protectionIP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
Overvoltage categoryIII
Tropicalisation2 conforming to IEC 60068-1
Relative humidity95 % at 55 °C
Ambient air temperature for operation-25…60 °C
Ambient air temperature for storage-40…70 °C
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height5.4 cm
Package 1 Width7.5 cm
Package 1 Length8.5 cm
Package 1 Weight295.0 g
Unit Type of Package 2BB1
Number of Units in Package 24
Package 2 Height9.0 cm
Package 2 Width8.5 cm
Package 2 Length22.5 cm
Package 2 Weight1.198 kg
Unit Type of Package 3S03
Number of Units in Package 348
Package 3 Height30.0 cm
Package 3 Width30.0 cm
Package 3 Length40.0 cm
Package 3 Weight14.988 kg
Contractual warranty
Warranty18 months
