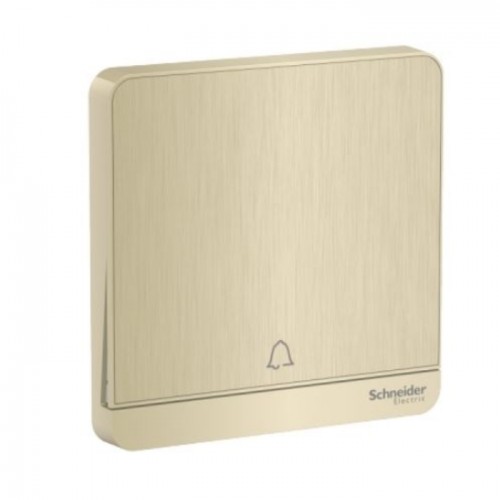

Schneider Electric AvatarOn Doorbell Metal Gold Hairline 10A 250V Push button doorbell E8331BPL1_GH
AvatarOn, push button for doorbell, 10A, 250V, Metal Gold Hairline
Model :E8331BPL1_GH
SKU :E8331BPL1_GH
7 days retun policy available
Cash on Delivery available
AED 43.00 AED 55.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider Electric AvatarOn Doorbell Metal Gold Hairline 10A 250V Push button doorbell E8331BPL1_GH
Schneider Electric Doorbell Metal Gold Hairline 10A 250V Push button doorbell E8331BPL1_GH
Schneider Electric AvatarOn push-button E8331BPL1_GH is a complete product in color metal gold hairline with 1 gang and with 1 rocker for doorbell. Its connection terminals are brass terminal. Besides, there is a bell symbol marking on the surface. Its matching mounting box can be recessed into the surface of the wall with flush type. Being made of polycarbonate, polycarbonate + GF 20 % material, this push-button is quite reliable and resistant. It is 86 mm in width, 86 mm in height. And its rated current is 10A. What's more, it well satisfied the standard of BS EN 60669-1, IEC 60669-1, MS IEC 60669-1, SS 227-1. The IP rating of this device is IP20. Also, it is environment-friendly, with UV resistant reached. This push-button is SVHC (substances of very high concern) free too. As a green premium product, this device is environmentally friendly as well. And it is mercury free and heavy metal free, which takes care of the environment and your health as always. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life.
Specifications
Main product or component type Push-button device application Doorbell colour tint Metal gold hairline
Complementary device presentation Complete product rated current 10 A at 250 V AC 50/60 Hz number of gangs 1 gang number of rocker 1 clamping connection capacity 3 x 2.5 mm² for solid cable(s)
3 x 2.5 mm² for stranded cable(s)
4 x 1.5 mm² for solid cable(s)
4 x 1.5 mm² for stranded cable(s) connections - terminals Brass terminal material Polycarbonate: grid plate
Polycarbonate: base
Polycarbonate: dolly
Polycarbonate: frame
Polycarbonate + GF 20 %: actuator marking Bell symbol device mounting Surface
Flush width 86 mm height 86 mm
Environment IP degree of protection IP20 maximum ambient air temperature for operation 45 °C operating altitude 2000 m relative humidity 0…95 % environmental characteristic UV resistant standards MS IEC 60669-1
SS 227-1
BS EN 60669-1
IEC 60669-1
Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Weight 81.0 g Package 1 Height 3.4 cm Package 1 width 8.6 cm Package 1 Length 8.6 cm Unit Type of Package 2 BB1 Number of Units in Package 2 60 Package 2 Weight 5.636 kg Package 2 Height 21 cm Package 2 width 30 cm Package 2 Length 39.5 cm
| product or component type | Push-button |
|---|---|
| device application | Doorbell |
| colour tint | Metal gold hairline |
| device presentation | Complete product |
|---|---|
| rated current | 10 A at 250 V AC 50/60 Hz |
| number of gangs | 1 gang |
| number of rocker | 1 |
| clamping connection capacity | 3 x 2.5 mm² for solid cable(s) 3 x 2.5 mm² for stranded cable(s) 4 x 1.5 mm² for solid cable(s) 4 x 1.5 mm² for stranded cable(s) |
| connections - terminals | Brass terminal |
| material | Polycarbonate: grid plate Polycarbonate: base Polycarbonate: dolly Polycarbonate: frame Polycarbonate + GF 20 %: actuator |
| marking | Bell symbol |
| device mounting | Surface Flush |
| width | 86 mm |
| height | 86 mm |
| IP degree of protection | IP20 |
|---|---|
| maximum ambient air temperature for operation | 45 °C |
| operating altitude | 2000 m |
| relative humidity | 0…95 % |
| environmental characteristic | UV resistant |
| standards | MS IEC 60669-1 SS 227-1 BS EN 60669-1 IEC 60669-1 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 81.0 g |
| Package 1 Height | 3.4 cm |
| Package 1 width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 60 |
| Package 2 Weight | 5.636 kg |
| Package 2 Height | 21 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 39.5 cm |
