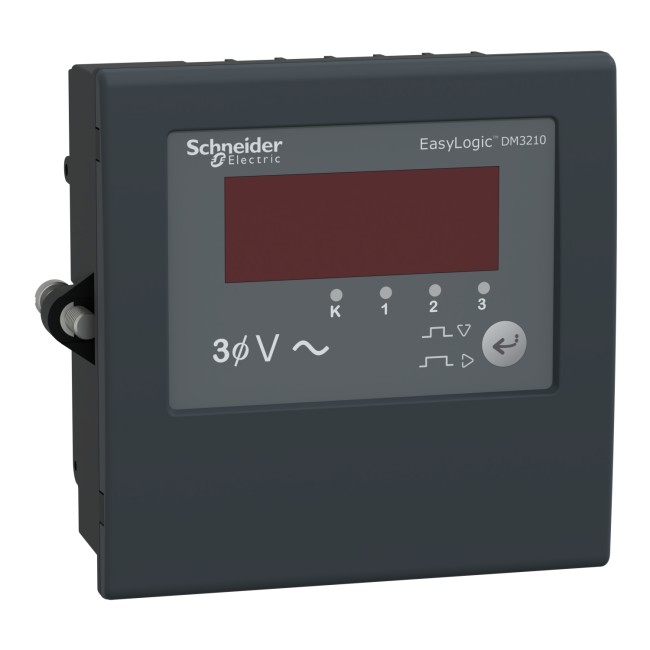

Schneider EasyLogic - Digital Panel Meter DM3000 - Voltmeter - three phases METSEDM3210
This digital panel meter is part of the EasyLogic Digital Panel Meter Series. This panel meter replaces multiple analog meters through [...]
Model :METSEDM3210
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
only 1 item(s) remaining
AED 72.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider EasyLogic - Digital Panel Meter DM3000 - Voltmeter - three phases METSEDM3210
This digital panel meter is part of the EasyLogic Digital Panel Meter Series. This panel meter replaces multiple analog meters through single digital meter. This is a three phases voltmeter digital panel meter. It offers a direct reading with auto scaling of values, a LED indication for phase identification and a inbuild selector switch. The meter has a 4 digits, seven segments, 15 mm height and bright red LED display. Mechanical dimensions are 96 mm in width, 96 mm in height and 52 mm in depth.
Specifications
| Range | EasyLogic |
|---|---|
| Product name | EasyLogic DM3000 |
| Device short name | DM3210 |
| Product or component type | Voltmeter |
| Device application | GenSet Test laboratories Load control |
| Poles description | 3P 3P + N |
|---|---|
| Type of measurement | Voltage |
| [Us] rated supply voltage | 100...230 V AC +/- 20 % 100...230 V DC +/- 20 % |
| Supply frequency | 50/60 Hz +/- 5 Hz |
| Network frequency | 50 Hz 60 Hz |
| Maximum power consumption in VA | 3 VA at 230 V AC |
| Display type | LED |
| Display digits | 4 |
| full scale display | 999.9 |
| Control type | Selector switch built-in |
| Analogue input type | Voltagethree phase |
| Measurement voltage | 25…277 V AC phase to neutral, 50/60 Hz +/- 5 Hz 44…480 V AC phase to phase, 50/60 Hz +/- 5 Hz |
| Accuracy | Voltage +/- 0.5 % of full scale for class 0.5 |
| Device mounting | Flush |
| Mounting support | Panel |
| Type of installation | Indoor |
| Measurement category | Category III |
| Standards | IEC 61326 |
| Product certifications | CE conforming to IEC 61010-1 |
| Electromagnetic compatibility | Conducted and radiated emissions class A conforming to CISPR 11 Electrostatic discharge conforming to IEC 61000-4-2 Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 Surge immunity test conforming to IEC 61000-4-5 Conducted RF disturbances conforming to IEC 61000-4-6 Magnetic field at power frequency conforming to IEC 61000-4-8 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Harmonics conforming to IEC 61000-3-2 Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 |
|---|---|
| IP degree of protection | Front panel: IP50 Body: IP30 |
| Relative humidity | 5…95 % |
| Pollution degree | 2 |
| Ambient air temperature for operation | -10…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Colour | Black |
| Width | 96 mm |
| Height | 96 mm |
| Depth | 38 mm |
| Cut-out dimensions | 92 x 92 mm |
| Net weight | 170 g |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.6 cm |
| Package 1 Width | 9.6 cm |
| Package 1 Length | 4.35 cm |
| Package 1 Weight | 256 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.1 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 128 |
| Package 3 Height | 105 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 32.8 kg |
