Schneider Electric Actassi CAT 6 Cable 4PR UTP 305m CM Blue Cable 24 AWG ACT4P6UCM3RBBU
Actassi, CAT 6, Cable 4PR , UTP, 305m ,CM, Blue
Model :ACT4P6UCM3RBBU
SKU :ACT4P6UCM3RBBU
Free Delivery
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Actassi CAT 6 Cable 4PR UTP 305m CM Blue Cable 24 AWG ACT4P6UCM3RBBU

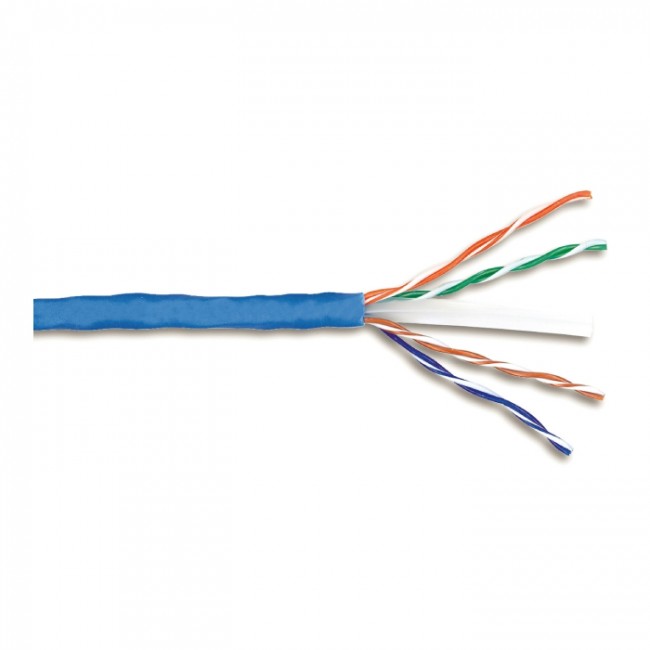

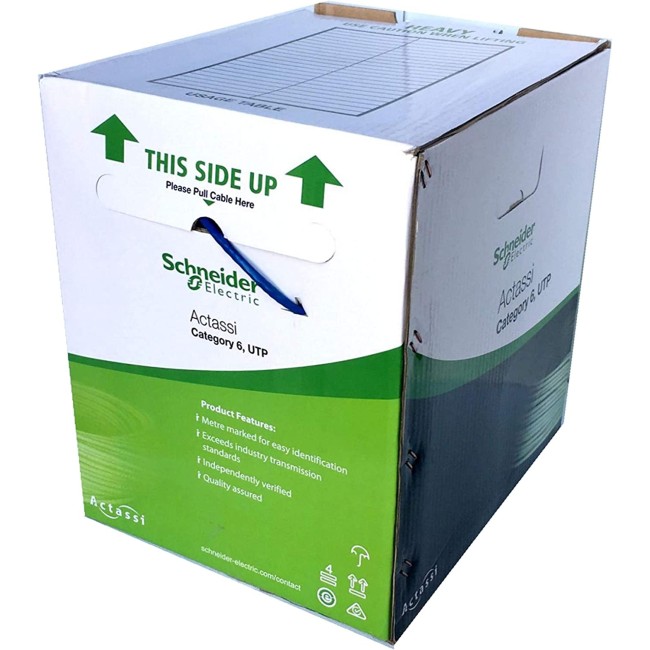

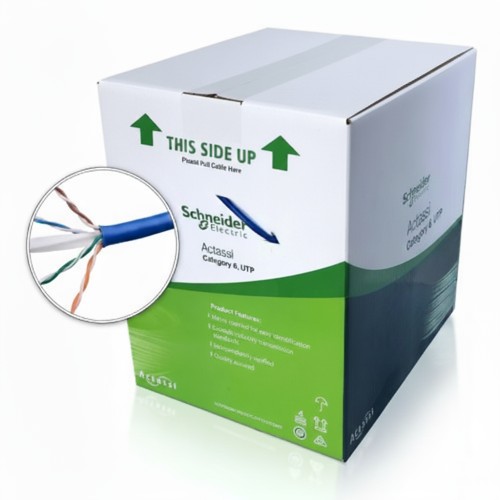

Schneider Electric Actassi CAT 6 Cable 4PR UTP 305m CM Blue Cable 24 AWG ACT4P6UCM3RBBU
Schneider Category 6, 4pr is a range of Actassi, which is a complete set of blue cable with a minimum return loss of 19.4 dB and can be used for communication in a category 6.
Specifications
| range | Actassi |
|---|---|
| product or component type | Copper cable |
| colour tint | Blue |
| cable shielding type | U/UTP |
| type of cable | 4 pair cables |
|---|---|
| communication network category | 6 |
| minimum return loss | Guaranteed: 20.1 dB at 100 MHz Guaranteed: 17.3 dB at 250 MHz |
| attenuation | Guaranteed: 19.8 dB @ 100 kHz per 100 m cable Guaranteed: 32.8 dB @ 250 kHz per 100 m cable |
| power sum near-end crosstalk [PSNEXT] | Guaranteed: 42.3 dB at 100 MHz Guaranteed: 36.3 dB at 250 MHz |
| near end crosstalk [NEXT] | Guaranteed: 44.3 dB at 100 MHz Guaranteed: 38.3 dB at 250 MHz |
| input impedance | 100 Ohm (+/-5) at 100000 kHz |
| maximum loop resistance | 15 Ohm per 100 m |
| capacitance unbalance | 330 pF / 100 m |
| wire insulation material | PE |
| conductor material | Solid bare copper |
| AWG gauge | AWG 23 |
| cable outer diameter | 6.2 mm |
| cable length | 305 m |
| ambient air temperature for operation | 75 °C |
|---|---|
| product certifications | UL |
| flame retardance | CM |
| standards | ANSI/TIA/EIA-568-B ISO/IEC 11801 UL 444 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 12 kg |
| Package 1 Height | 270 mm |
| Package 1 width | 350 mm |
| Package 1 Length | 330 mm |
| Warranty | 18 months |
|---|
