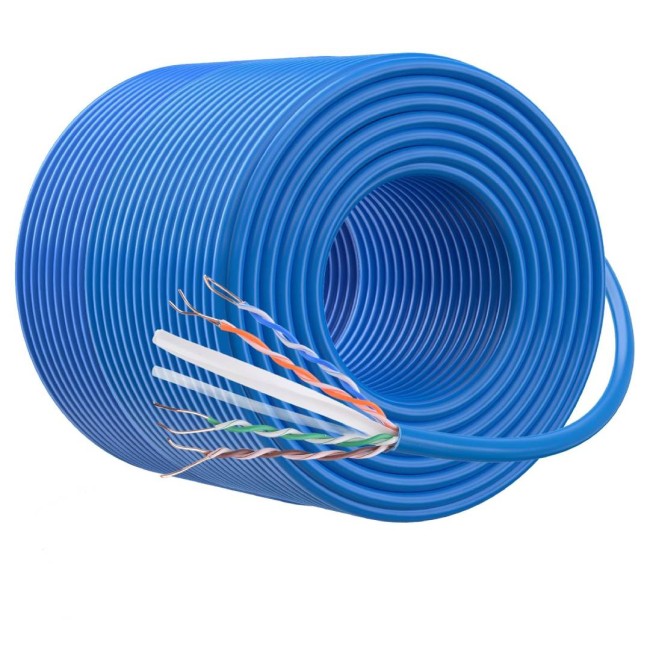

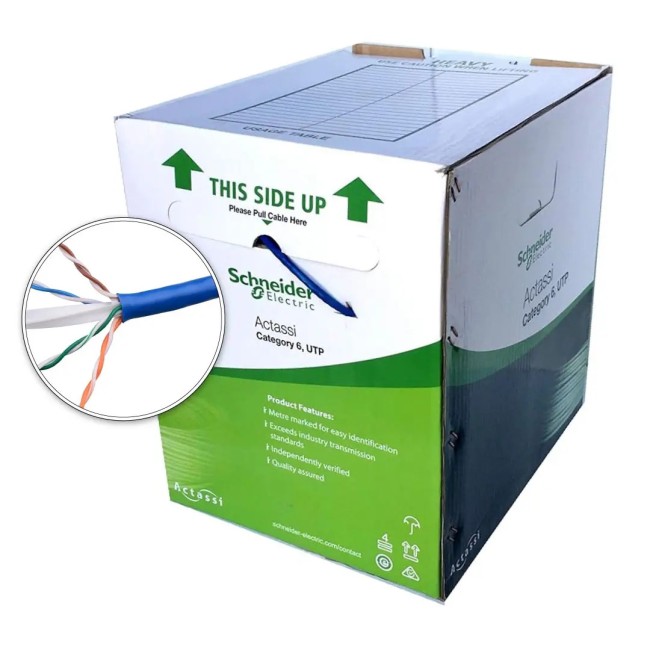

Schneider Electric Actassi CAT 6 Cable UTP 23 AWG Solid Copper Blue CM Wire ACT4P6UCM3RBBU_E

Actassi, CAT 6, Cable UTP, 23 AWG Solid Copper, Blue, CM
Model :ACT4P6UCM3RBBU_E
SKU :ACT4P6UCM3RBBU_E
Assured Free Delivery

No Return This item cannot be returned or exchanged
Cash on Delivery Cash on Delivery available
AED 480.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries

100%
- +
Bulk Order

  •  Condition: New

Description for Schneider Electric Actassi CAT 6 Cable UTP 23 AWG Solid Copper Blue CM Wire ACT4P6UCM3RBBU_E


Schneider Electric Actassi CAT 6 Cable UTP 23 AWG Solid Copper Blue CM Wire ACT4P6UCM3RBBU_E

Features

  • cable shielding type: U/UTP
  • type of cable: 4 pair cables
  • product or component type: copper cable
  • colour: blue
  • conductor material: solid bare copper
  • AWG gauge: AWG 23

Specifications


Main
rangeActassi
product or component typeCopper cable
colour tintBlue
cable shielding typeU/UTP
Complementary
type of cable4 pair cables
communication network category6
minimum return lossGuaranteed: 19.4 dB at 0.772 MHz
Guaranteed: 20 dB at 1 MHz
Guaranteed: 23 dB at 4 MHz
Guaranteed: 24.5 dB at 8 MHz
Guaranteed: 25 dB at 10 MHz
Guaranteed: 25 dB at 16 MHz
Guaranteed: 25 dB at 20 MHz
Guaranteed: 24.3 dB at 25 MHz
Guaranteed: 23.6 dB at 31.25 MHz
Guaranteed: 21.5 dB at 62.5 MHz
Guaranteed: 20.1 dB at 100 MHz
attenuationGuaranteed: 1.8 dB @ 0.772 MHz per 100 m cable
Guaranteed: 2 dB @ 1 MHz per 100 m cable
Guaranteed: 4.1 dB @ 4 MHz per 100 m cable
Guaranteed: 5.8 dB @ 8 MHz per 100 m cable
Guaranteed: 6.5 dB @ 10 MHz per 100 m cable
Guaranteed: 8.2 dB @ 16 MHz per 100 m cable
Guaranteed: 9.3 dB @ 20 MHz per 100 m cable
Guaranteed: 10.4 dB @ 25 MHz per 100 m cable
Guaranteed: 11.7 dB @ 31.25 MHz per 100 m cable
Guaranteed: 17 dB @ 62.5 MHz per 100 m cable
Guaranteed: 22 dB @ 100 MHz per 100 m cable
power sum near-end crosstalk [PSNEXT]Guaranteed: 64 dB at 0.772 MHz
Guaranteed: 62.3 dB at 1 MHz
Guaranteed: 53.3 dB at 4 MHz
Guaranteed: 48.8 dB at 8 MHz
Guaranteed: 47.3 dB at 10 MHz
Guaranteed: 44.3 dB at 16 MHz
Guaranteed: 42.8 dB at 20 MHz
Guaranteed: 41.3 dB at 25 MHz
Guaranteed: 39.9 dB at 31.25 MHz
Guaranteed: 35.4 dB at 62.5 MHz
Guaranteed: 32.3 dB at 100 MHz
near end crosstalk [NEXT]Guaranteed: 67 dB at 0.772 MHz
Guaranteed: 65.3 dB at 1 MHz
Guaranteed: 56.3 dB at 4 MHz
Guaranteed: 51.8 dB at 8 MHz
Guaranteed: 50.3 dB at 10 MHz
Guaranteed: 47.3 dB at 16 MHz
Guaranteed: 45.8 dB at 20 MHz
Guaranteed: 44.3 dB at 25 MHz
Guaranteed: 42.9 dB at 31.25 MHz
Guaranteed: 38.4 dB at 62.5 MHz
Guaranteed: 35.3 dB at 100 MHz
input impedance100 Ohm (+/- 6) at 1…600 MHz
maximum loop resistance73.2 Ohm
capacitance unbalance330 pF / 100 m
wire insulation materialPE
conductor materialSolid bare copper
AWG gaugeAWG 24
cable outer diameter6 mm
cable length305 m
Environment
ambient air temperature for operation75 °C
product certificationsUL
flame retardanceCM
standardsANSI/TIA-568-C.2
ISO/IEC 11801
Packing Units
Package 1 Weight11.430 kg
Package 1 Height2.200 cm
Package 1 width4.000 cm
Package 1 Length4.050 cm
