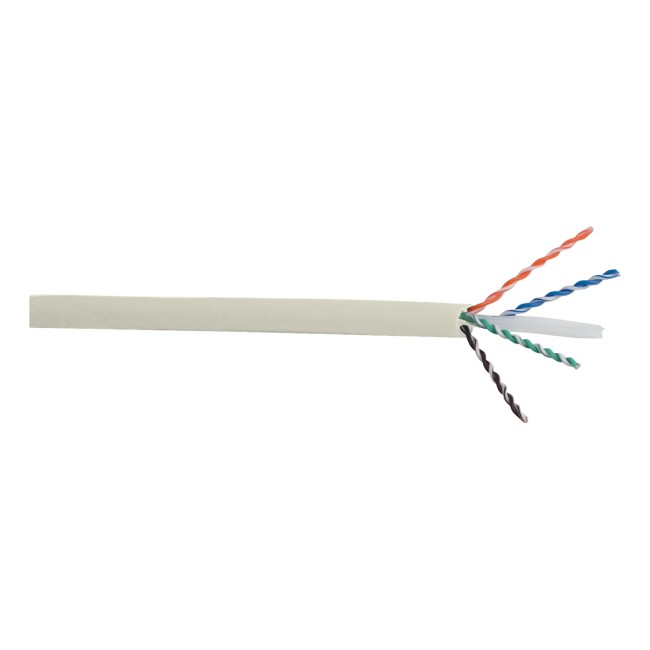

Schneider Electric Actassi Cat6A U/UTP Cable 305m – Actassi Category 6A 10G UTP ACTTG4P6AULS3RWE_L
Schneider Electric Actassi Cat6A 10G U/UTP Network Cable – 305m LSZH White
Model :ACTTG4P6AULS3RWE_L
SKU :ACTTG4P6AULS3RWE_L
This item cannot be returned or exchanged
Cash on Delivery available
AED 977.00 AED 1,090.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider Electric Actassi Cat6A U/UTP Cable 305m – Actassi Category 6A 10G UTP ACTTG4P6AULS3RWE_L
This Actassi copper cable is a Category 6A 4-pair high quality product delivering excellent network performance when using in conjunction with other Actassi Cat 6A products. The Cat 6A cable consists of 4 pairs of copper 23 AWG compliant with requirement of TIA/EIA 568-B.2-10 Category 6A and ISO/IEC 11801 Class Ea. This UTP cable length is 305m, Low Smoke Zero Halogen with white sheath colour.
Specifications
| Range | Actassi |
|---|---|
| Product or component type | Copper cable |
| Colour tint | White |
| Cable shielding type | U/UTP |
| Type of cable | 4 pair cables |
|---|---|
| Communication network category | 6A |
| Minimum return loss | Guaranteed: 20 dB at 1 MHz Guaranteed: 23 dB at 4 MHz Guaranteed: 24.5 dB at 8 MHz Guaranteed: 25 dB at 10 MHz Guaranteed: 25 dB at 16 MHz Guaranteed: 25 dB at 20 MHz Guaranteed: 24.3 dB at 25 MHz Guaranteed: 23.6 dB at 31.25 MHz Guaranteed: 21.5 dB at 62.5 MHz Guaranteed: 20.1 dB at 100 MHz Guaranteed: 18 dB at 200 MHz Guaranteed: 17.3 dB at 250 MHz Guaranteed: 16.8 dB at 300 MHz Guaranteed: 15.9 dB at 400 MHz Guaranteed: 15.2 dB at 500 MHz |
| Attenuation | Guaranteed: 2.1 dB @ 1 MHz per 100 m cable Guaranteed: 3.8 dB @ 4 MHz per 100 m cable Guaranteed: 5.3 dB @ 8 MHz per 100 m cable Guaranteed: 5.9 dB @ 10 MHz per 100 m cable Guaranteed: 7.5 dB @ 16 MHz per 100 m cable Guaranteed: 8.4 dB @ 20 MHz per 100 m cable Guaranteed: 9.4 dB @ 25 MHz per 100 m cable Guaranteed: 10.5 dB @ 31.25 MHz per 100 m cable Guaranteed: 15 dB @ 62.5 MHz per 100 m cable Guaranteed: 9.1 dB @ 100 MHz per 100 m cable Guaranteed: 27.6 dB @ 200 MHz per 100 m cable Guaranteed: 31.1 dB @ 250 MHz per 100 m cable Guaranteed: 34.3 dB @ 300 MHz per 100 m cable Guaranteed: 40.1 dB @ 400 MHz per 100 m cable Guaranteed: 45.3 dB @ 500 MHz per 100 m cable |
| Power sum alien near-end crosstalk [PSANEXT] | 67 dB at 1 MHz 67 dB at 4 MHz 67 dB at 8 MHz 67 dB at 10 MHz 67 dB at 16 MHz 67 dB at 20 MHz 67 dB at 25 MHz 67 dB at 31.25 MHz 65.6 dB at 62.5 MHz 65.6 dB at 100 MHz 58 dB at 200 MHz 56.5 dB at 250 MHz 55.3 dB at 300 MHz 53.5 dB at 400 MHz 52 dB at 500 MHz |
| Power sum attenuation to alien crosstalk ratio far-end [PSAACRF] | 66.2 dB at 4 MHz 60.1 dB at 8 MHz 58.2 dB at 10 MHz 54.1 dB at 16 MHz 52.2 dB at 20 MHz 50.2 dB at 25 MHz 48.3 dB at 31.25 MHz 42.3 dB at 62.5 MHz 38.2 dB at 100 MHz 32.2 dB at 200 MHz 30.2 dB at 250 MHz 28.7 dB at 300 MHz 26.2 dB at 400 MHz 24.2 dB at 500 MHz |
| Near end crosstalk [NEXT] | Guaranteed: 74.3 dB at 1 MHz Guaranteed: 65.3 dB at 4 MHz Guaranteed: 60.8 dB at 8 MHz Guaranteed: 59.3 dB at 10 MHz Guaranteed: 56.2 dB at 16 MHz Guaranteed: 54.8 dB at 20 MHz Guaranteed: 53.3 dB at 25 MHz Guaranteed: 51.9 dB at 31.25 MHz Guaranteed: 47.4 dB at 62.5 MHz Guaranteed: 44.3 dB at 100 MHz Guaranteed: 39.8 dB at 200 MHz Guaranteed: 38.3 dB at 250 MHz Guaranteed: 37.1 dB at 300 MHz Guaranteed: 35.3 dB at 400 MHz Guaranteed: 33.8 dB at 500 MHz |
| Input impedance | 100 Ohm (+/- 15 %) at 1…100 MHz 100 Ohm (+/- 22 %) at 100…250 MHz |
| Maximum loop resistance | 72 Ohm |
| Capacitance unbalance | 330 pF / 100 m |
| Maximum resistance unbalance | 5 % |
| Wire insulation material | HDPE |
| Conductor material | Solid bare copper |
| AWG gauge | AWG 23 |
| Cable outer diameter | 8.5 mm |
| Cable length | 305 m |
| Cable weight | 17 kg |
| Ambient air temperature for operation | 0…75 °C |
|---|---|
| Flame retardance | LSZH |
| Standards | ISO/IEC 11801 Ea TIA/EIA-568-B.2-10 |
