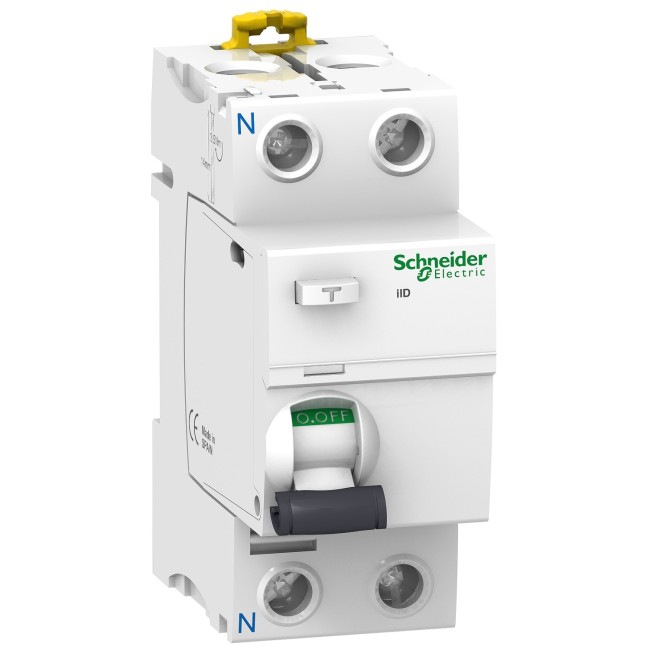

Schneider Electric Acti 9 iID RCCB 2P 25A 300mA Type AC A9R74225

RCCB 2P 25A 300mA AC
Model :A9R74225
SKU :
Assured Free Delivery

No Return 7 days retun policy available
Cash on Delivery Cash on Delivery available
AED 99.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries

100%
- +
Bulk Order

  •  Condition: New

Description for Schneider Electric Acti 9 iID RCCB 2P 25A 300mA Type AC A9R74225


Schneider Electric Acti 9 iID RCCB 2P 25A - 300mA Type AC A9R74225


This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 2P circuit breaker with In rated current of 25A, AC type protection class and a 300mA earth leakage sensitivity. This product protects against electrical shock by indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The electrical endurance is up to 15000 cycles. The mechanical endurance is up to 20000 cycles. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 91mm x (D) 73.5mm. The weight is 0.21kg. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -5°C to 60°C. The storage temperature is from -40°C to 85°C.

Specifications


Main
RangeActi9
Product nameActi9 iID
Product or component typeResidual current circuit breaker (RCCB)
Device short nameIID
Poles description2P
Neutral positionLeft
[In] rated current25 A
Network typeAC
earth-leakage sensitivity300 mA
Earth-leakage protection time delayInstantaneous
Earth-leakage protection classType AC
Complementary
Device location in systemOutgoer
Network frequency50/60 Hz
[Ue] rated operational voltage220...240 V AC 50/60 Hz
Residual current tripping technologyVoltage independent
rated breaking and making capacityIdm 1500 A
Im 1500 A
rated conditional short-circuit current10 kA
[Ui] rated insulation voltage500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage6 kV
Contact position indicatorYes
Control typeToggle
Mounting modeClip-on
Mounting supportDIN rail
9 mm pitches4
Height91 mm
Width36 mm
Depth73.5 mm
Net weight0.21 kg
colourWhite
Mechanical durability20000 cycles
electrical durabilityAC-1: 15000 cycles
Locking options descriptionPadlocking device
connections - terminalsSingle terminal top or bottom 1…35 mm² rigid
Single terminal top or bottom 1…25 mm² flexible
Single terminal top or bottom 1…25 mm² flexible with ferrule
wire stripping length14 mm for top or bottom connection
tightening torque3.5 N.m top or bottom
Environment
standardsEN/IEC 61008-1
product certificationsSNI
IP degree of protectionIP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
pollution degree3
electromagnetic compatibility8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1
ambient air temperature for operation-5…60 °C
Ambient air temperature for storage-40…85 °C
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height8.4 cm
Package 1 Width4.0 cm
Package 1 Length10.0 cm
Package 1 Weight210 g
Unit Type of Package 2S03
Number of Units in Package 254
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight11.781 kg
Unit Type of Package 3P12
Number of Units in Package 3432
Package 3 Height44.4 cm
Package 3 Width80 cm
Package 3 Length120 cm
Package 3 Weight106.248 kg

Contractual warranty
Warranty18 months
