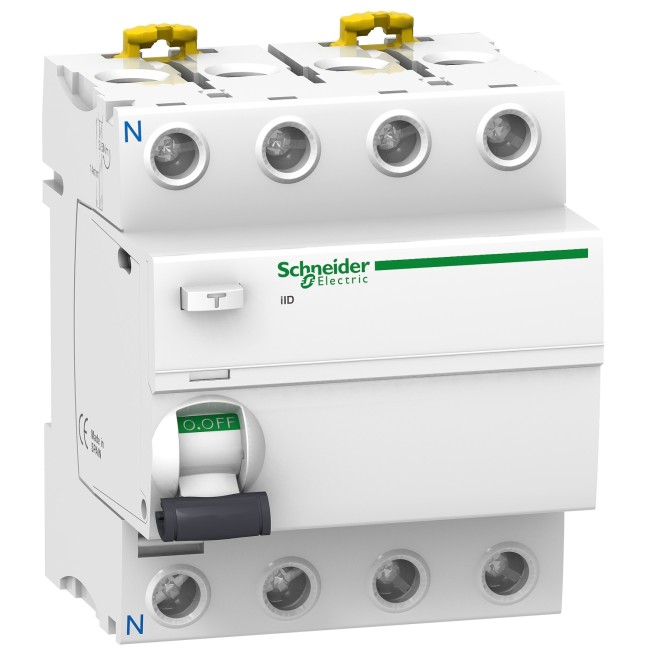

Schneider Electric Acti 9 iID RCCB 4P 100A 30mA type AC A9R11491

Schneider Acti 9 RCCB 4P 100A 30mA AC A9R11491
Model :A9R11491
SKU :
Assured Free Delivery

No Return 7 days retun policy available
Cash on Delivery Cash on Delivery available
AED 275.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries

100%
- +
Bulk Order

  •  Condition: New

Description for Schneider Electric Acti 9 iID RCCB 4P 100A 30mA type AC A9R11491


Schneider Electric Acti 9 iID RCCB 4P 100A 30mA type AC A9R11491


This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with In rated current of 100A, AC type protection class and a 30mA earth leakage sensitivity. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The electrical endurance is up to 10000 cycles. The mechanical endurance is up to 20000 cycles. The Ue operational voltage is 380VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 91mm x (D) 73.5mm. The weight is 0.37kg. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -5°C to 60°C. The storage temperature is from -40°C to 85°C.

Specifications


Main
RangeActi9
Product nameActi9 iID
Product or component typeResidual current circuit breaker (RCCB)
Device short nameIID
Poles description4P
Neutral positionLeft
[In] rated current100 A
Network typeAC
earth-leakage sensitivity30 mA
Earth-leakage protection time delayInstantaneous
Earth-leakage protection classType AC

Complementary
Device location in systemOutgoer
Network frequency50/60 Hz
[Ue] rated operational voltage380...415 V AC 50/60 Hz
Residual current tripping technologyVoltage independent
rated breaking and making capacityIdm 1500 A
Im 1500 A
rated conditional short-circuit current10 kA
[Ui] rated insulation voltage500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage6 kV
Surge current250 A
Contact position indicatorYes
Control typeToggle
Mounting modeClip-on
Mounting supportDIN rail
9 mm pitches8
Height91 mm
Width72 mm
Depth73.5 mm
Net weight0.37 kg
colourWhite
Mechanical durability20000 cycles
electrical durabilityAC-1: 10000 cycles
Locking options descriptionPadlocking device
connections - terminalsSingle terminal top or bottom 1…35 mm² rigid
Single terminal top or bottom 1…25 mm² flexible
Single terminal top or bottom 1…25 mm² flexible with ferrule
wire stripping length14 mm for top or bottom connection
tightening torque3.5 N.m top or bottom

Environment
standardsEN/IEC 61008-1
product certificationsISI
SNI
IP degree of protectionIP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
pollution degree3
electromagnetic compatibility8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1
ambient air temperature for operation-5…60 °C
Ambient air temperature for storage-40…85 °C

Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height8.2 cm
Package 1 Width7.5 cm
Package 1 Length10 cm
Package 1 Weight411 g
Unit Type of Package 2S03
Number of Units in Package 227
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight11.552 kg

Contractual warranty
Warranty18 months
