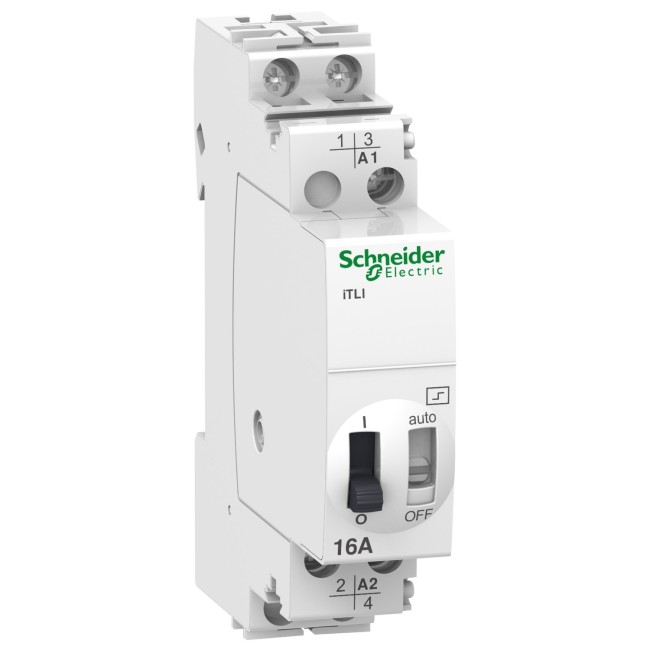

Schneider Electric Acti9 iTLI impulse relay 2P 1NO 1NC 16A coil 110 VDC 230 - 240 VAC 50/60Hz A9C30815

Acti9 iTLI impulse relay 2P 1NO+1NC 16A coil 110 VDC 230 - 240 VAC 50/60Hz
Model :A9C30815
SKU :A9C30815
Assured

No Return 7 days retun policy available
Cash on Delivery Cash on Delivery available
AED 55.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries

100%
- +
Bulk Order

  •  Condition: New

Description for Schneider Electric Acti9 iTLI impulse relay 2P 1NO 1NC 16A coil 110 VDC 230 - 240 VAC 50/60Hz A9C30815


Schneider Electric Acti9 iTLI impulse relay 2P 1NO+1NC 16A coil 110 VDC 230 - 240 VAC 50/60Hz A9C30815

This Acti9 iTLi is a modular impulse relay. It is a changeover contact with 1 normally open and 1 normally close contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 230VAC to 240VAC or 110VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C. This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.



Specifications


Main
range of productActi9
Product nameActi9 iTL
Product or component typeImpulse relay
Device short nameITLi
Device applicationChangeover relay
Poles2P
Pole contact composition1 NO + 1 NC
[In] rated current16 A
Network typeAC
[Uc] control circuit voltage230...240 V AC 50/60 Hz
110 V DC

Complementary
Network frequency50/60 Hz
[Ue] rated operational voltage250 V AC 50/60 Hz
Control typeCoil deconnection
Remote and manual control
Control signal typeImpulse
Switching frequency5 switching operations/minute
100 switching operations/day
Impulse duration50 ms...1 s
Remote control typeIlluminated push-button 3 mA
Local signallingON/OFF indication
Mounting modeFixed
Mounting supportDIN rail
9 mm pitches2
Height84 mm
Width18 mm
Depth60 mm
Electrical durabilityAC-21: 200000 cycles
AC-22: 100000 cycles
Connections - terminalsControl circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid
Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid with cable end
Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible
Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible with ferrule
Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid
Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid with cable end
Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible
Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible with ferrule
Wire stripping length11 mm
Tightening torque1 N.m
Range compatibilityActi 9 iATEt
Acti 9 iATL4
Acti 9 iATLc
Acti 9 iATLc+s
Acti 9 iATLm
Acti 9 iATLs
Acti 9 iATLz
Acti 9 iETL iTL 16
Acti 9 iATLc+c
Acti 9 iATL24

Environment
StandardsEN 669-1
EN 669-2-2
Product certificationsCCC
GOST
Quality labelsCEBEC
NF
IMQ
KEMA
VDE
Noise level60 dB
IP degree of protectionIP20 conforming to IEC 60529 (on opening)
IP40 conforming to IEC 60529 (in enclosure)
Pollution degree3
Tropicalisation2
Relative humidity95 % at 55 °C
Ambient air temperature for operation-20…50 °C
Ambient air temperature for storage-40…70 °C
