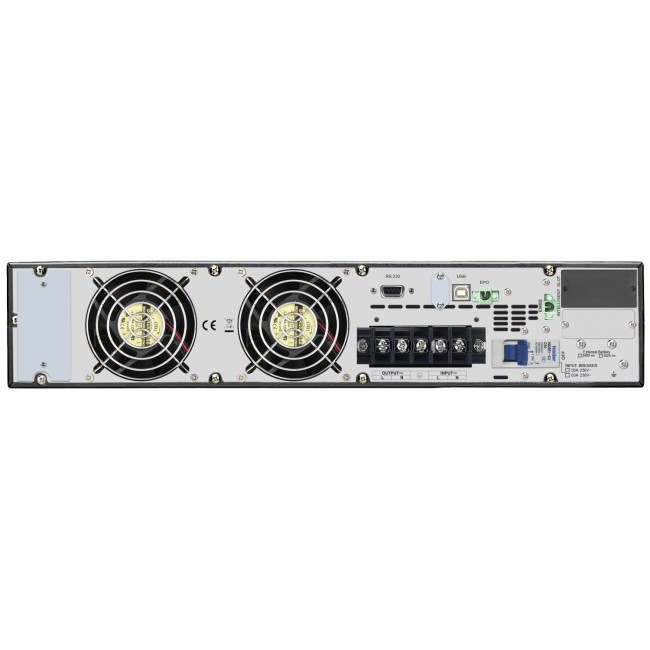

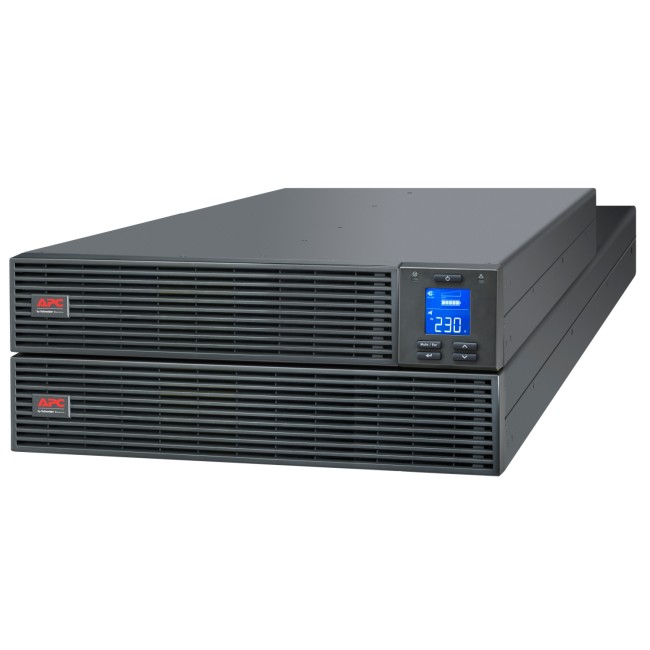

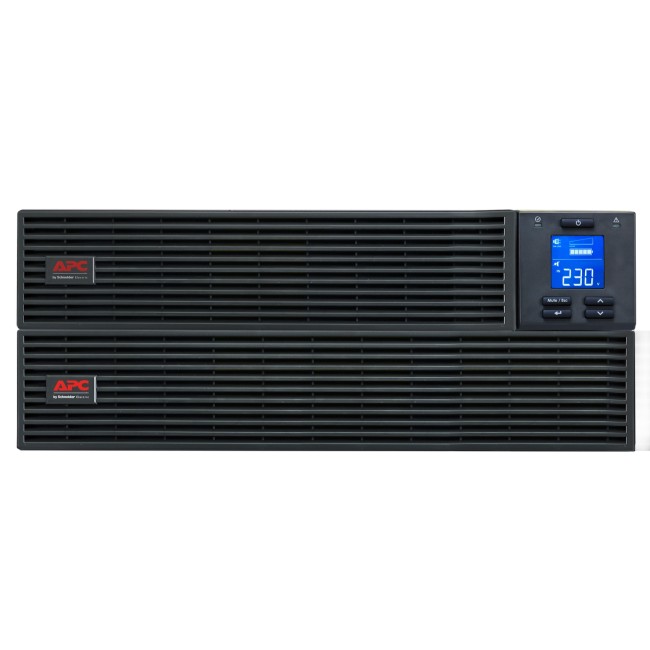

Schneider Electric APC Easy UPS On-Line SRV6KRIRK
Intelligent Card Slot, LCD, W/ rail kit
Model :SRV6KRIRK
SKU :
Free Delivery
7 days retun policy available
Cash on Delivery available
AED 8,669.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider Electric APC Easy UPS On-Line SRV6KRIRK
About this item:
- High quality, Double-conversion Online UPS designed for essential power protection needs even in the most unstable power conditions.
Specifications
| Presentation | High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. |
|---|---|
| Lead time | Usually in Stock |
| Main Input Voltage | 230 V |
|---|---|
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 6000 W |
| Rated power in VA | 6000 VA |
| output connector type | Hard wire 3-wire (1P + N + E) 1 |
| Number of rack unit | 4U |
| provided equipment | 1 user manual 1 RS-232 configuration cable 2 rack mounting brackets 2 rack mounting support rails 1 external battery pack 1 battery cable user manual |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| Redundant | No |
| colour | Black (RAL 7010) |
|---|---|
| Height | 17.3 cm |
| Width | 43.8 cm |
| Depth | 71.0 cm |
| Net weight | 61 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| USB compatible | Yes |
| Mounting position | Horizontal |
| input voltage limits | 110...300 V 60 % load 176...300 V full load |
|---|---|
| number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| network frequency | 40...70 Hz auto sensing |
| Maximum configurable power in VA | 6000 VA |
|---|---|
| Maximum configurable power in W | 6000 W |
| output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Harmonic distortion | 1 % |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| efficiency | 94 % (full load) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Product certifications | CE UKCA EAC TISI |
|---|---|
| standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…60 °C |
| storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 55 dBA |
| Heat dissipation | 1172 Btu/h |
| IP degree of protection | IP20 |
