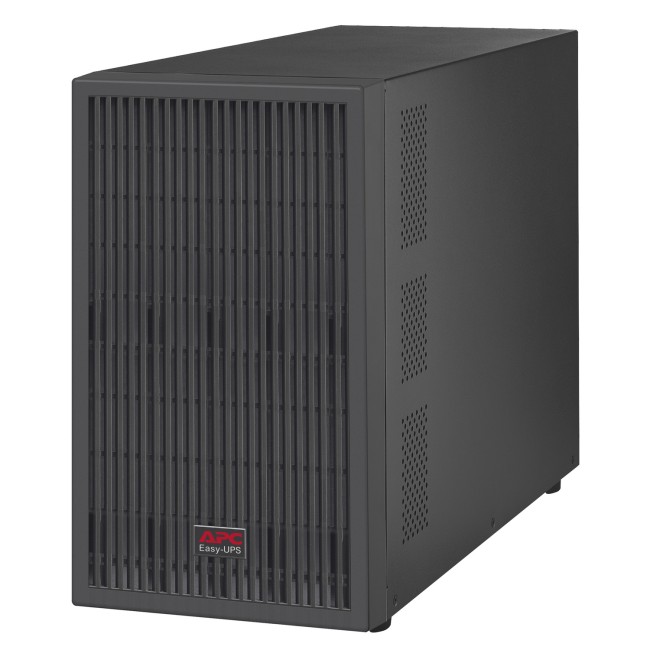

Schneider Electric APC Easy UPS On-Line SRV 72V Battery Pack for 2/3KVA Extended Runtime Model SRV72BP-9A
APC Easy UPS On-Line SRV 72V Battery Pack for 2/3KVA Extended Runtime Model
Model :SRV72BP-9A
SKU :SRV72BP-9A
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Electric APC Easy UPS On-Line SRV 72V Battery Pack for 2/3KVA Extended Runtime Model SRV72BP-9A
This APC Easy UPS SRV Battery Pack, connected with compatible SRV On-Line UPS, provides extended runtime during prolonged power outages. This 72V SRV tower battery pack is compatible with 2kVA/3kVA SRV Extended Runtime UPS models. The extended battery pack is a lead-acid battery with a 2-year warranty.
Specifications
| Product or component type | External battery pack |
|---|---|
| Battery type | Lead-acid battery |
| Provided equipment | User manual Battery cable |
| Range of product | Easy UPS On-Line |
| Number of battery blocks per string | 6 |
|---|---|
| Device mounting | Floor mounted |
| Number of battery filled slots | 1 |
| Number of battery free slots | 0 |
| Battery voltage | 72 V |
| Colour | Black |
|---|---|
| Height | 336 mm |
| Width | 190 mm |
| Depth | 425 mm |
| Net weight | 38 kg |
| Mounting mode | Not rack-mountable |
| USB compatible | No |
| Product certifications | CE UKCA EAC EN/IEC 62040-1 |
|---|
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…40 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 46.500 cm |
| Package 1 Width | 56.500 cm |
| Package 1 Length | 32.500 cm |
| Package 1 Weight | 40.200 kg |
