Description for Schneider Electric Easy9 Miniature Circuit Breaker 3P 40A C curve 6000A MCB 400V EZ9F56340

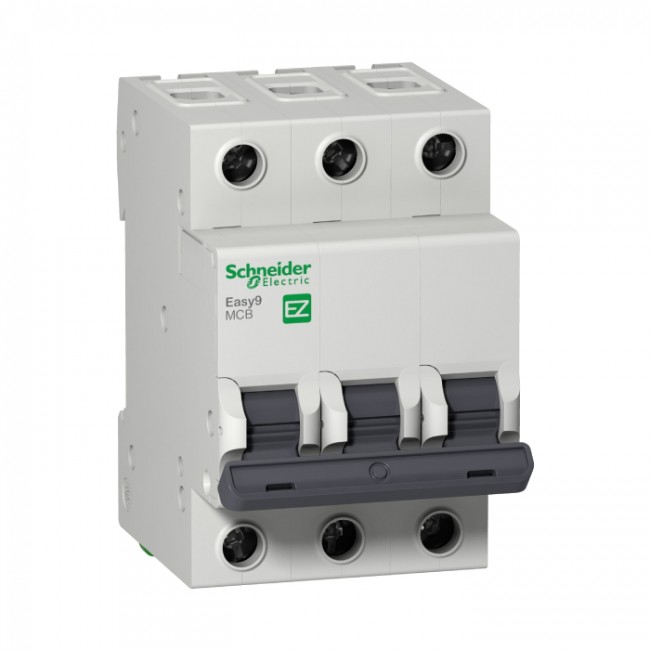

Schneider Electric Easy9 Miniature Circuit Breaker 3P 40A C curve 6000A MCB 400V EZ9F56340

Use Easy9 modular devices or a protection device to provide safety and reliability to all small buildings and residential installations.

Part of Easy Series
Miniature circuit breakers to provide short-circuit and cable overload protection. Designed with functionality and protection in mind, the Easy9 miniature circuit breakers offer a user-friendly design for ultimate ease of use.
Features
- Providing protection when you most need it, the miniature circuit breakers give you high levels of protection from short circuits and cable overload whilst providing a user-friendly interface to make them as accessible as possible.
- The high-quality design provides much-needed protection.
- Highly accessible user-friendly design.
- Availability whenever and wherever you look for it.
- Robust and designed to stand up to the test of time.
- Excellent levels of reliability.
- Cost-effective provides protection and reliability at an affordable price.
Benefits
- Designed for modular devices, the miniature circuit breakers ensure protection from short circuits and cable overload. - Resulting from close work with electricians worldwide, they provide enhanced protection as well as peace of mind to customers.
- Enhanced protection to pass on to your customers.
- Designed with ease of installation in mind.
- Suitable for modular devices.
Applications
Use in a range of applications to provide short-circuit and cable overload protection. Easy to install and with a user-friendly interface, the miniature circuit breakers provide accessibility, reliability, and protection.

Specifications

---

Main

range	Easy9
device application	Distribution
product or component type	Miniature circuit-breaker
device short name	Easy9 MCB
Poles	3P
number of protected poles	3
[In] rated current	40 A
network type	AC
trip unit technology	Thermal-magnetic
curve code	C
breaking capacity	10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1 6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
suitability for isolation	Yes conforming to IEC 60898-1

Complementary

network frequency	50/60 Hz
[Ue] rated operational voltage	220 V AC 50/60 Hz 400 V AC 50/60 Hz
magnetic tripping limit	5...10 x In
[Ics] rated service breaking capacity	6 kA 100 % x Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
[Ui] rated insulation voltage	500 V AC 50/60 Hz conforming to IEC 60898-1
[Uimp] rated impulse withstand voltage	4 kV conforming to IEC 60898-1
contact position indicator	Yes
control type	Toggle
local signalling	Without
mounting mode	Clip-on
mounting support	DIN rail
9 mm pitches	6
height	81 mm
width	54 mm
depth	66.5 mm
colour	Grey (RAL 7035)
mechanical durability	10000 cycles
electrical durability	4000 cycles
connections - terminals	Tunnel type terminal (top or bottom) 1…25 mm² flexible Tunnel type terminal (top or bottom) 1…35 mm² rigid
tightening torque	3.5 N.m top or bottom
earth-leakage protection	Without

Environment

standards	IEC 60898-1
product certifications	CE VDE
IP degree of protection	IP20 conforming to IEC 60529
pollution degree	2
tropicalisation	2
relative humidity	95 % at -5…60 °C
ambient air temperature for operation	-5…60 °C
ambient air temperature for storage	-40…85 °C

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	359.0 g
Package 1 Height	7.5 cm
Package 1 width	5.3 cm
Package 1 Length	8.5 cm
Unit Type of Package 2	P06
Number of Units in Package 2	384
Package 2 Weight	157.164 kg
Package 2 Height	20.0 cm
Package 2 width	60.0 cm
Package 2 Length	80.0 cm
Unit Type of Package 3	BB1
Number of Units in Package 3	4
Package 3 Weight	1.508 kg
Package 3 Height	8.0 cm
Package 3 width	8.8 cm
Package 3 Length	22.8 cm

REACh Regulation

REACh Declaration

EU RoHS Directive

Compliant

EU RoHS Declaration

China RoHS Regulation

China RoHS declaration

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

Product Environmental Profile

WEEE

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
