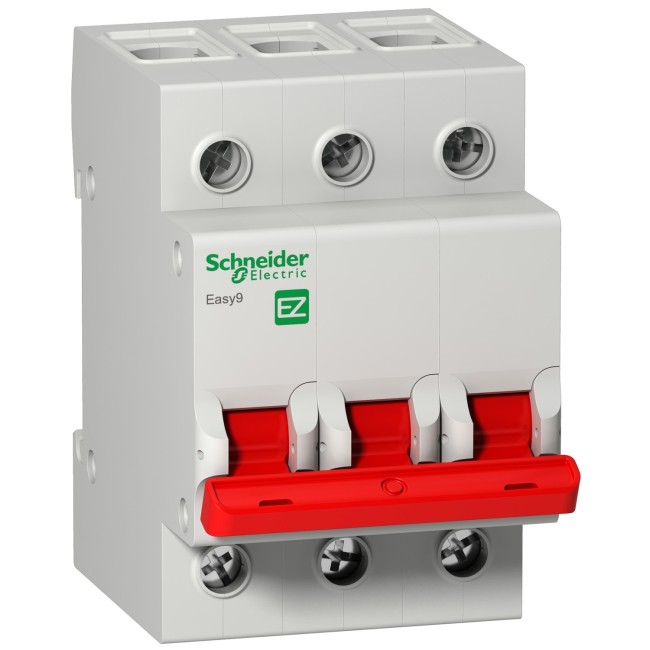

Schneider Electric Easy9 switch disconnector 3P 63A 400V EZ9S16363

3P 63A 400V EZ9S16363
Model :EZ9S16363
SKU :
Assured

No Return 7 days retun policy available
Cash on Delivery Cash on Delivery available
AED 36.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries

100%
- +
Bulk Order

  •  Condition: New

Description for Schneider Electric Easy9 switch disconnector 3P 63A 400V EZ9S16363


Schneider Electric Easy9 switch disconnector 3P 63A 400V EZ9S16363


This Easy9 is a modular and reliable switch disconnector. This switch disconnector is used for control (opening and closing of circuits under load). This product is also used for disconnection of on-load electrical circuits already protected against overload and short-circuits. It has a position contact indication suitable for industrial isolation according to IEC 60947-3 standard. It is a 3P switch disconnector with 63A rated current. Electrical endurance goes up to 1500 cycles, and mechanical endurance goes up to 8500 cycles. The Ue rated operational voltage is 400VAC. The Ui rated insulation voltage is 500VAC. It has a Uimp rated impulse withstand voltage of 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 6 pitches of 9mm. The dimensions are (W) 54mm x (H) 81mm x (D) 66.5mm. The color is light grey (RAL7035). According to IEC 60529 standard, the degree of protection is IP20 or IP40 in modular enclosure. The pollution degree is NA. The operating temperature is -5°C to 55°C. The storage temperature is -5°C to 70 °C. This product complies with IEC 60947-3 standard.

Specifications


Main
RangeEasy9
Product or component typeSwitch
Device short nameEasy9 switch
Switch applicationDistribution
Poles3P
utilisation categoryAC-22A
suitability for isolationYes
Complementary
[Ie] rated operational current63 A at 400 V 50/60 Hz
[Ue] rated operational voltage400 V AC 50/60 Hz
[Icm] rated short-circuit making capacity0.945 kA
[Icw] rated short-time withstand current0.756 kA during 1 s
[Ui] rated insulation voltage500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage4 kV
Control typeToggle
Local signallingON/OFF indication
Contact position indicatorYes
Mounting modeClip-on
Mounting supportDIN rail
9 mm pitches6
Height81 mm
Width54 mm
Depth66.5 mm
ColourGrey
Mechanical durability8500 cycles
electrical durability1500 cycles
connections - terminalsTunnel type terminal (top or bottom) 1…35 mm² rigid
Tunnel type terminal (top or bottom) 1…25 mm² flexible
Tightening torque3.5 N.m
Environment
StandardsIEC 60947-3
Product certificationsCE
IP degree of protectionIP20 conforming to IEC 60529
tropicalisation2
Ambient air temperature for operation-5…55 °C
Ambient air temperature for storage-5…70 °C

Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height7.8 cm
Package 1 Width5.4 cm
Package 1 Length8.5 cm
Package 1 Weight243 g
Unit Type of Package 2BB2
Number of Units in Package 24
Package 2 Height8.22 cm
Package 2 Width8.86 cm
Package 2 Length22.34 cm
Package 2 Weight1.092 kg
Package 3 Height80 cm
