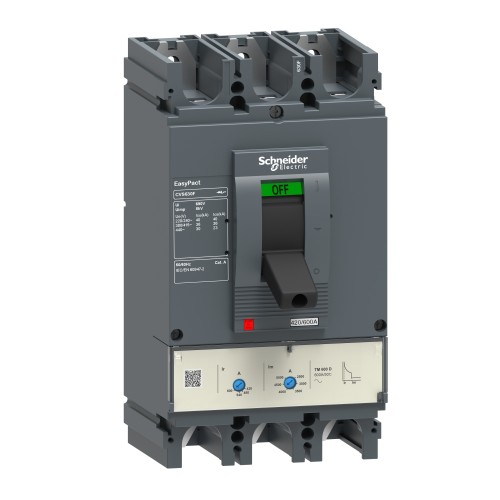

Schneider Electric Easypact CVS - CVS630F circuit breaker 3P/3d LV563406

Schneider Electric Easypact CVS - CVS630F circuit breaker 3P/3d
Model :LV563406
SKU :LV563406
Assured Free Delivery

No Return 7 days retun policy available
Cash on Delivery Cash on Delivery available
AED 1,187.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries

100%
- +
Bulk Order

  •  Condition: New

Description for Schneider Electric Easypact CVS - CVS630F circuit breaker 3P/3d LV563406


Schneider Electric Easypact CVS - CVS630F circuit breaker 3P/3d LV563406


Specifications


Main
RangeEasyPact
Product nameEasyPact CVS
Device short nameCVS630F
Product or component typeCircuit breaker
Device applicationDistribution
Poles description3P
Protected poles description3D
Earth leakage protection (Vigi add on)Without
[In] rated current600 A at 50 °C
Network typeAC
Utilisation categoryCategory A
[Icu] Breaking capacity40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
Trip unit nameTM-D
Trip unit technologyThermal-magnetic
Trip unit rating600 A at 50 °C
Protection typeOverload protection (thermal)
Short-circuit protection (magnetic)

Complementary
[Uimp] rated impulse withstand voltage8 kV conforming to EN/IEC 60947-2
Network frequency50/60 Hz
Breaking capacity codeF
[Ics] rated service breaking capacity40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
23 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability15000 cycles
Electrical durability4000 cycles 415 V In conforming to IEC 60947-2
Control typeToggle
Long time pick-up adjustment type IrAdjustable
long time pick-up adjustment range0.7...1 x In
long time delay adjustment typeFixed
Short-time delay adjustment typeFixed
Instantaneous pick-up adjustment type IiAdjustable
Instantaneous pick-up adjustment range4...8 x In
Contact position indicatorYes
Mounting modeFixed
Mounting supportBackplate
upside connectionFront
Downside connectionFront
Connection pitch45 mm
Compatibility codeCVS630
Width140 mm
Depth110 mm
Height255 mm

Environment
StandardsIEC 60947-2
EN 60947-2
Product certificationsIEC
GOST
Electrical shock protection classClass II
Ambient air temperature for operation-25…70 °C
Ambient air temperature for storage-50…85 °C
