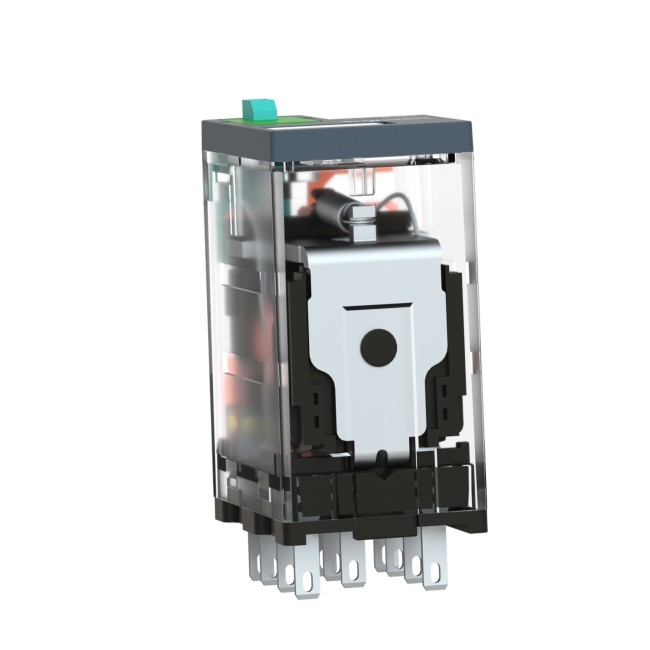

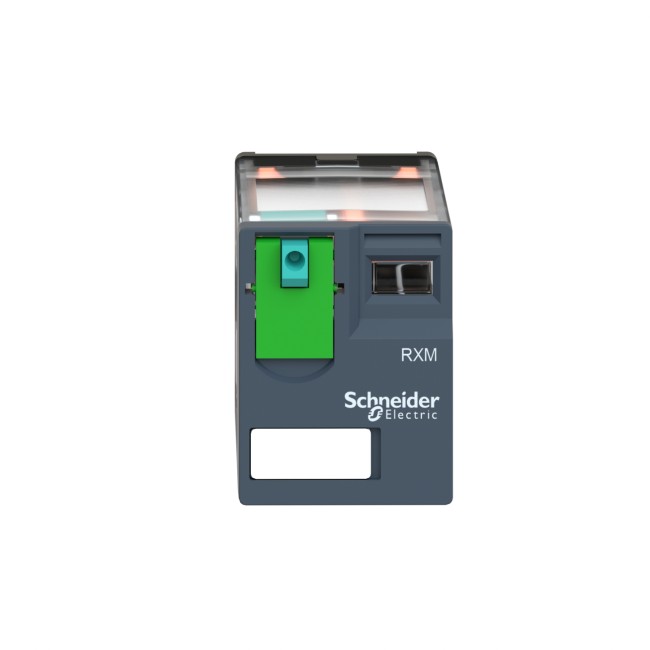

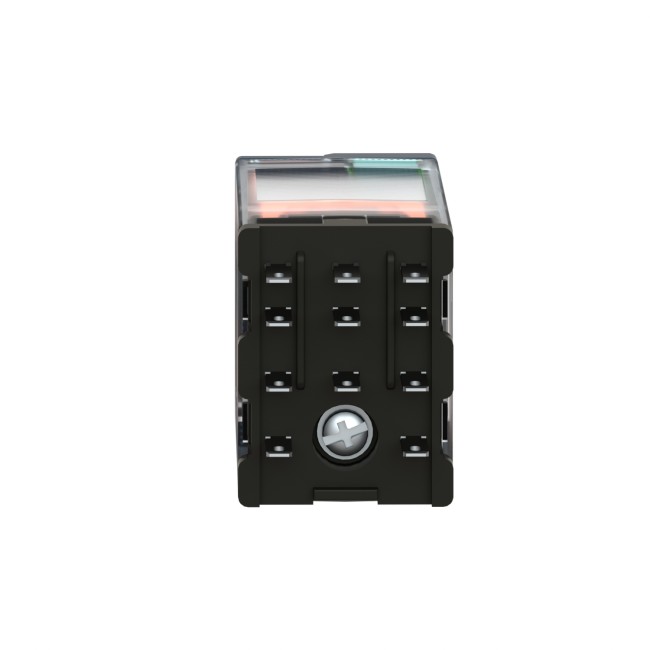

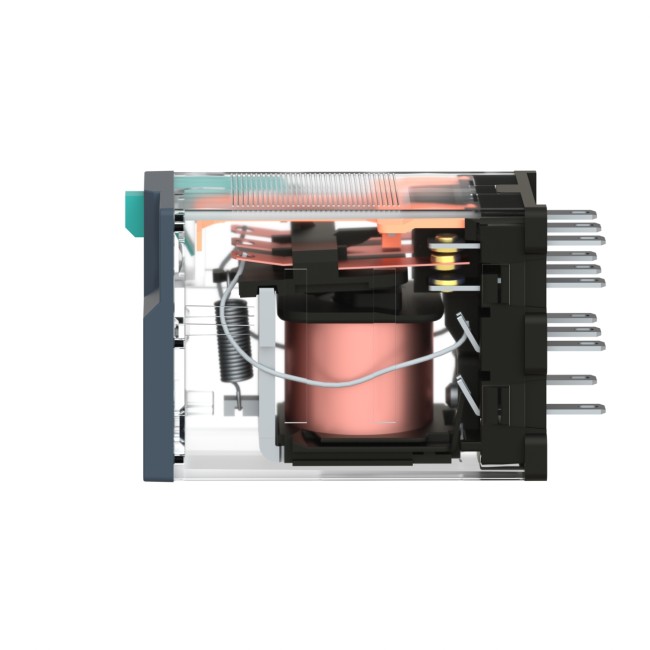

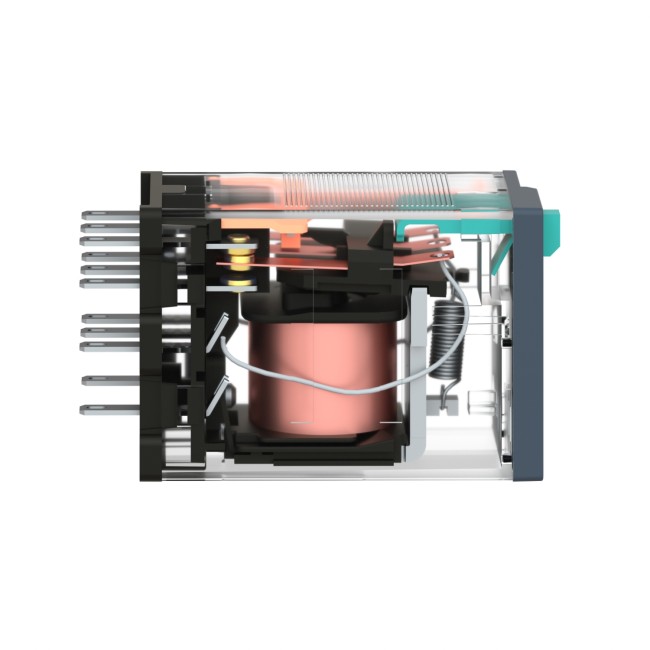

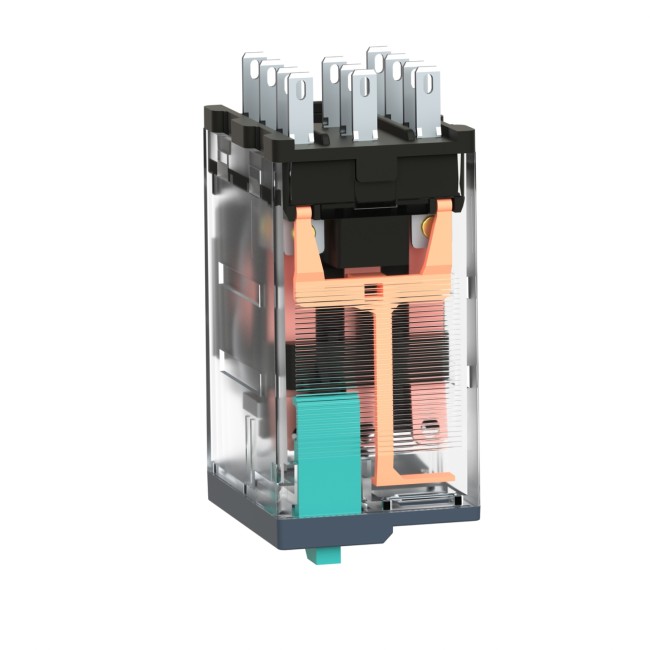

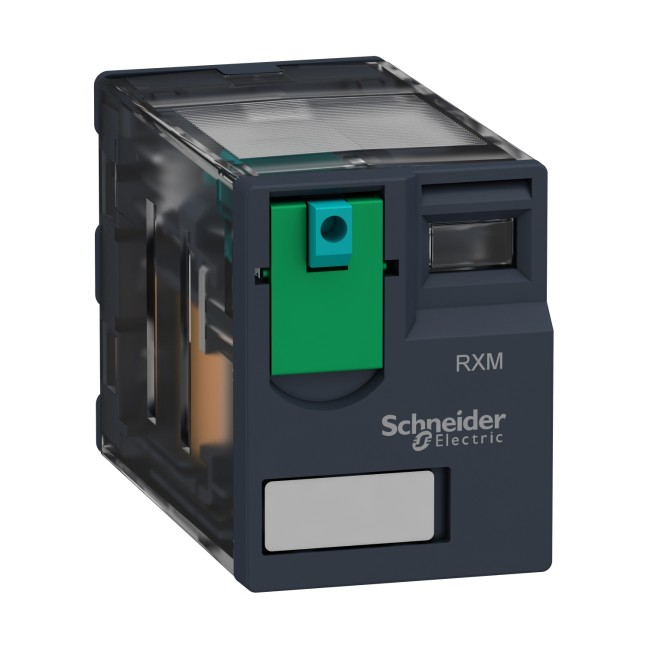

Schneider Electric Harmony Miniature plug-in relay 10A 3 CO with lockable test button 12V DC RXM3AB1JD

Harmony Miniature plug-in relay 10A 3 CO with lockable test button 12V DC
Model :RXM3AB1JD

No Return 7 days retun policy available
Cash on Delivery Cash on Delivery available
AED 14.50
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries

- +
Bulk Order

  •  Condition: New

Description for Schneider Electric Harmony Miniature plug-in relay 10A 3 CO with lockable test button 12V DC RXM3AB1JD

Schneider Electric Harmony Miniature plug-in relay 10A 3 CO with lockable test button 12V DC RXM3AB1JD

"This Harmony RXM miniature plug-in relay has a coil control voltage of 12V DC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers one-step lockable test button and mechanical indicator for contact status." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 "It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH." "RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available." "It is sold in lots of 10 and reference includes relay only." 0 "The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts." 0 0


Range of productHarmony Electromechanical Relays
Series nameMiniature
Product or component typePlug-in relay
Device short nameRXM
Contacts type and composition3 C/O
[Uc] control circuit voltage12 V DC
Status LEDWithout
Control typeLockable test button
utilisation coefficient20 %

Shape of pinFlat
[Ui] rated insulation voltage250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL
[Uimp] rated impulse withstand voltage4 kV during 1.2/50 µs
Contacts materialAgNi
[Ie] rated operational current10 A at 28 V (DC) NO conforming to IEC
10 A at 250 V (AC) NO conforming to IEC
5 A at 28 V (DC) NC conforming to IEC
5 A at 250 V (AC) NC conforming to IEC
10 A at 30 V (DC) conforming to UL
10 A at 277 V (AC) conforming to UL
Continuous output current6.7 A
Maximum switching voltage250 V conforming to IEC
resistive rated load10 A at 250 V AC
10 A at 28 V DC
Maximum switching capacity2500 VA/280 W
Minimum switching capacity170 mW at 10 mA, 17 V
Operating rate<= 1200 cycles/hour under load
<= 18000 cycles/hour no-load
Mechanical durability10000000 cycles
Electrical durability100000 cycles for resistive load
average coil consumption0.9 W
Drop-out voltage threshold>= 0.1 Uc
operate time20 ms
release time20 ms
average coil resistance160 Ohm at 20 °C +/- 10 %
Rated operational voltage limits9.6...13.2 V DC
Safety reliability dataB10d = 100000
Protection categoryRT I
Test levelsLevel A group mounting
Operating positionAny position
CAD overall height79 mm
CAD overall depth78.45 mm
Net weight0.037 kg
Device presentationComplete product

Dielectric strength1300 V AC between contacts with micro disconnection
2000 V AC between coil and contact
2000 V AC between poles
Product certificationsLloyd's
StandardsEN/IEC 61810-1
CSA C22.2 No 14
UL 508
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-40…55 °C
Vibration resistance3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
IP degree of protectionIP40 conforming to EN/IEC 60529
Shock resistance10 gn for in operation
30 gn for not operating
Pollution degree2
