Schneider Electric Harmony Miniature plug-in relay 6A 4 CO with lockable test button 230V AC RXM4AB1P7

Harmony Miniature plug-in relay 6A 4 CO with lockable test button 230V AC
Model :RXM4AB1P7

No Return 7 days retun policy available
Cash on Delivery Cash on Delivery available
AED 14.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries

- +
Bulk Order

  •  Condition: New

Description for Schneider Electric Harmony Miniature plug-in relay 6A 4 CO with lockable test button 230V AC RXM4AB1P7

Schneider Electric Harmony Miniature plug-in relay 6A 4 CO, with lockable test button 230V AC RXM4AB1P7

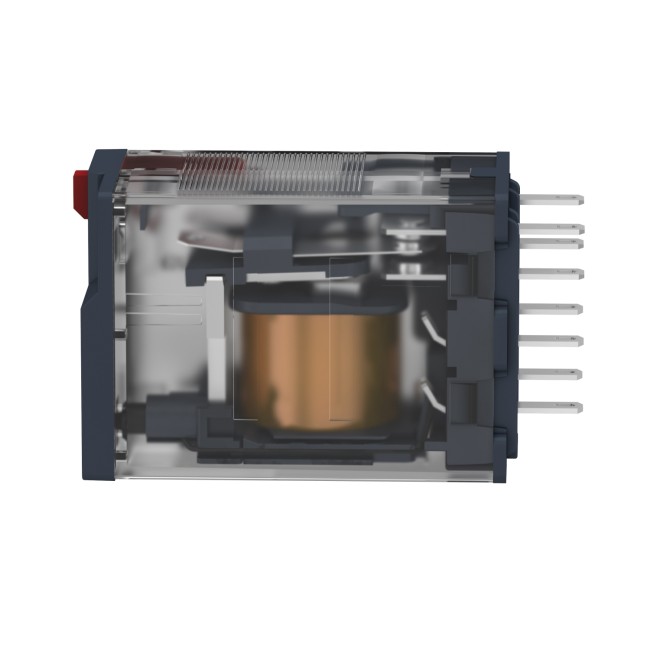

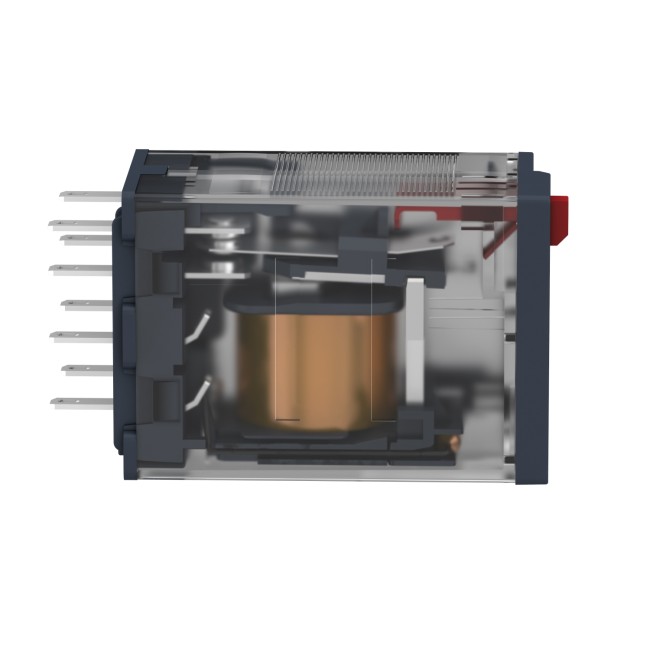

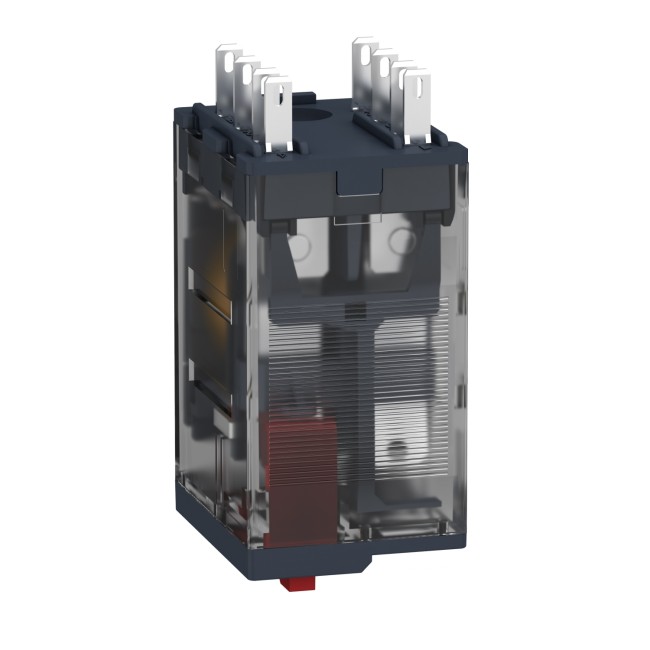

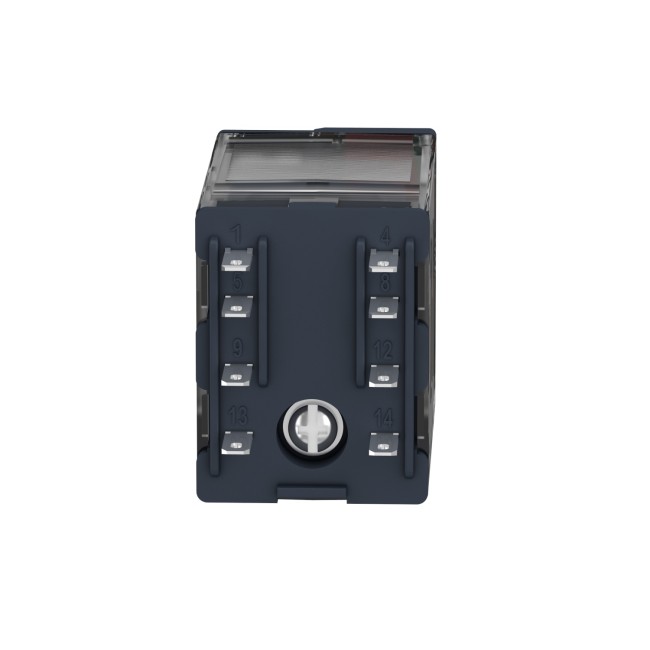

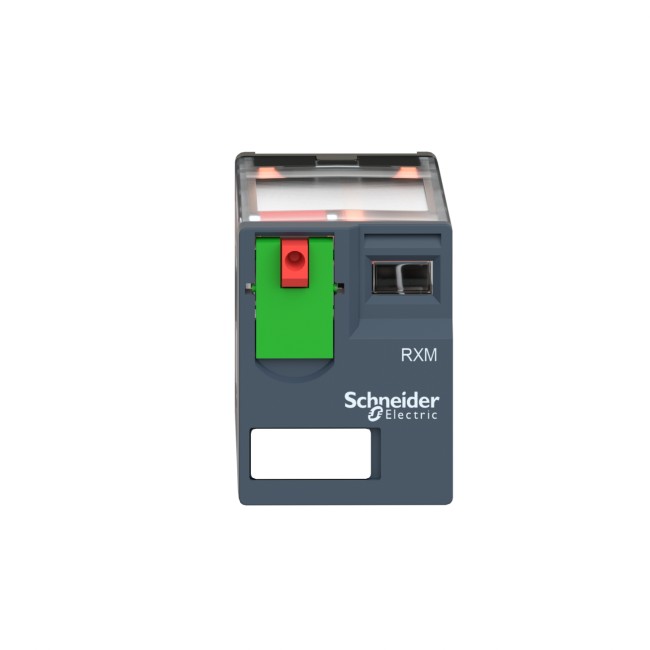

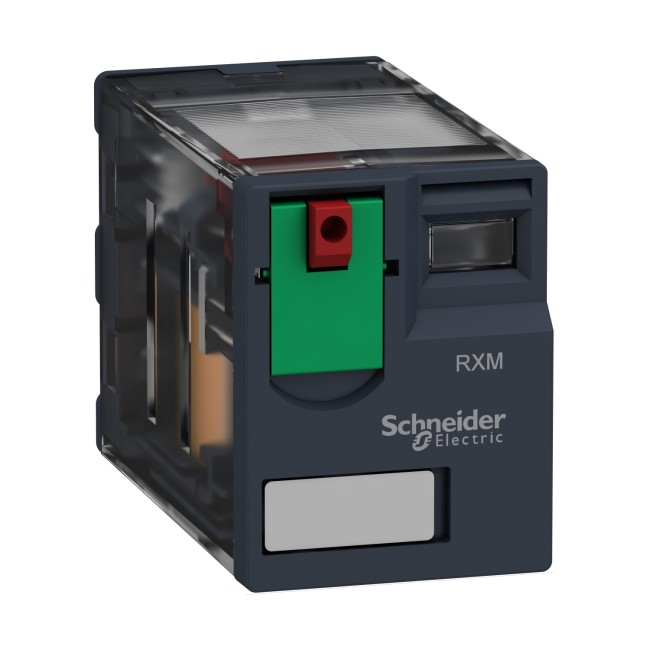

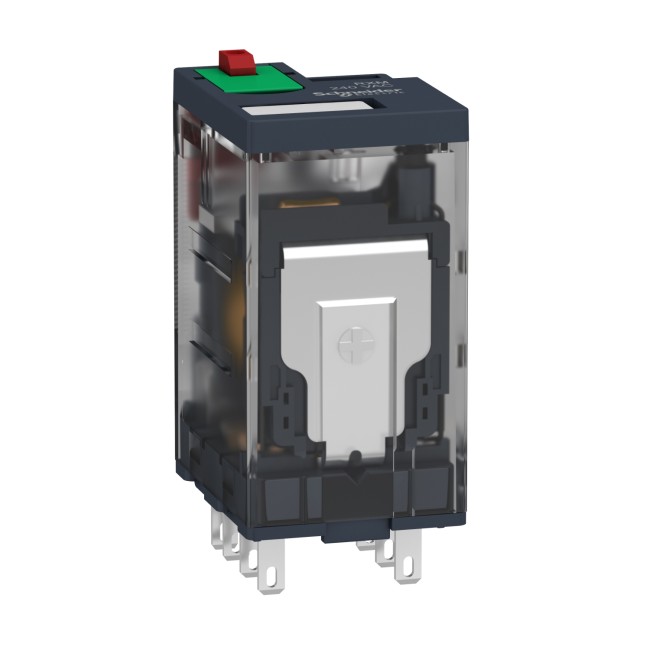

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 230 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.


Range of productHarmony Electromechanical Relays
Series nameMiniature
Product or component typePlug-in relay
Device short nameRXM
Contacts type and composition4 C/O
[Uc] control circuit voltage230 V AC 50/60 Hz
Status LEDWithout
Control typeLockable test button
utilisation coefficient20 %

Shape of pinFlat
[Ui] rated insulation voltage250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL
[Uimp] rated impulse withstand voltage2.5 kV during 1.2/50 µs
Contacts materialAgNi
[Ie] rated operational current3 A at 28 V (DC) NC conforming to IEC
3 A at 250 V (AC) NC conforming to IEC
6 A at 28 V (DC) NO conforming to IEC
6 A at 250 V (AC) NO conforming to IEC
6 A at 277 V (AC) conforming to UL
8 A at 30 V (DC) conforming to UL
Continuous output current5 A
Maximum switching voltage250 V conforming to IEC
resistive rated load6 A at 250 V AC
6 A at 28 V DC
Maximum switching capacity1500 VA/168 W
Minimum switching capacity170 mW at 10 mA, 17 V
Operating rate<= 1200 cycles/hour under load
<= 18000 cycles/hour no-load
Mechanical durability10000000 cycles
Electrical durability100000 cycles for resistive load
average coil consumption in VA1.2 at 60 Hz
Average consumption1.2 VA at 60 Hz
Drop-out voltage threshold>= 0.15 Uc
operate time20 ms
release time20 ms
average coil resistance15000 Ohm at 20 °C +/- 15 %
Rated operational voltage limits184...253 V AC
Safety reliability dataB10d = 100000
Protection categoryRT I
Test levelsLevel A group mounting
Operating positionAny position
CAD overall height79 mm
CAD overall depth78.45 mm
Net weight0.037 kg
Device presentationComplete product

Dielectric strength1300 V AC between contacts with micro disconnection
2000 V AC between coil and contact with basic insulation
2000 V AC between poles with basic insulation
Product certificationsCSA
StandardsEN/IEC 61810-1
CSA C22.2 No 14
UL 508
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-40…55 °C
Vibration resistance3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
IP degree of protectionIP40 conforming to EN/IEC 60529
Shock resistance10 gn for in operation
30 gn for not operating
Pollution degree2
