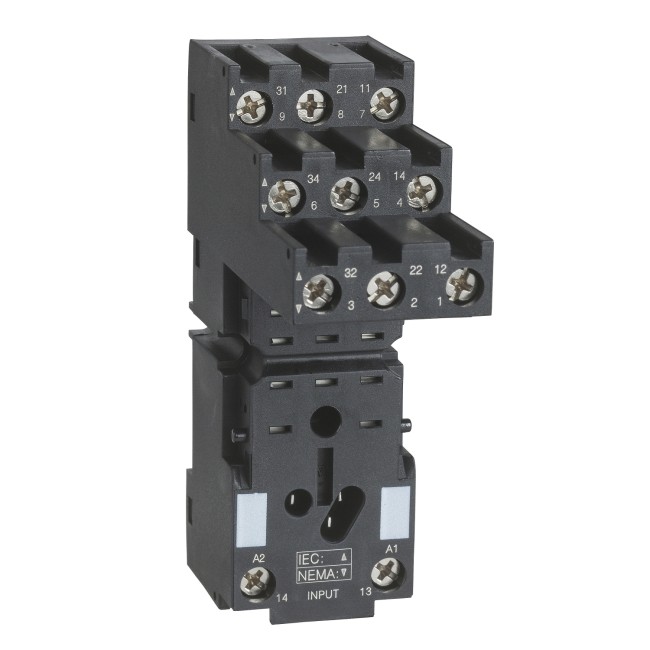

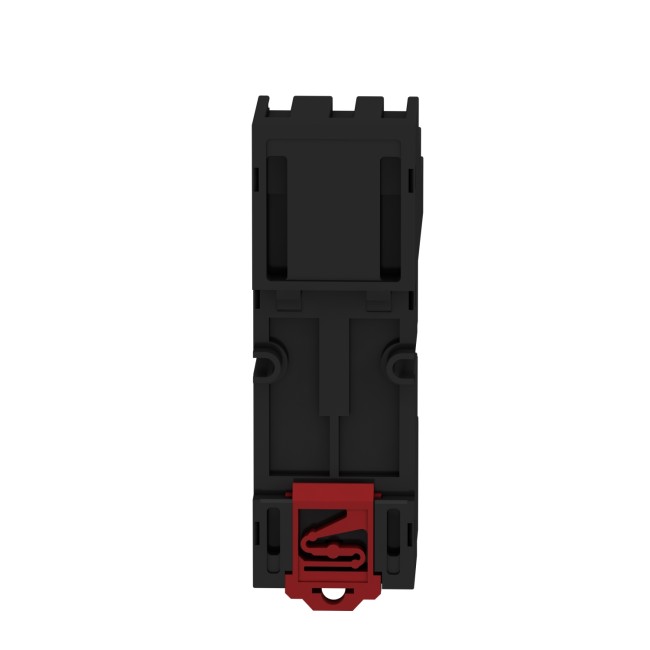

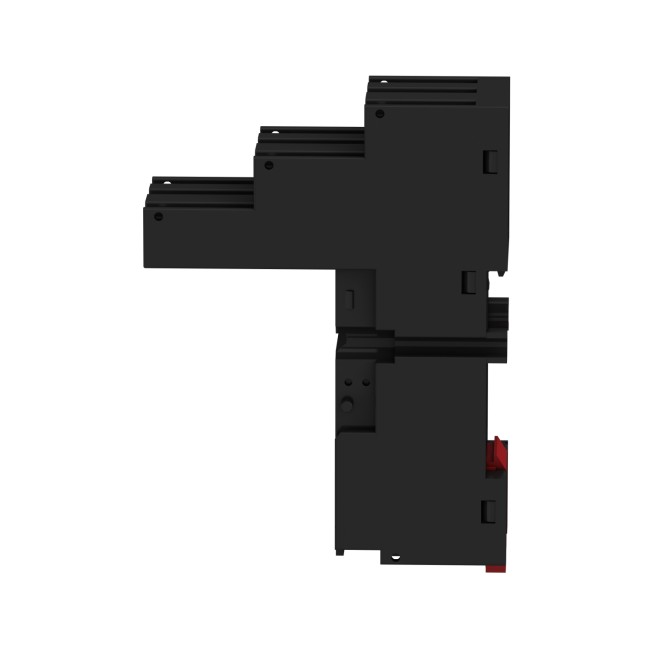

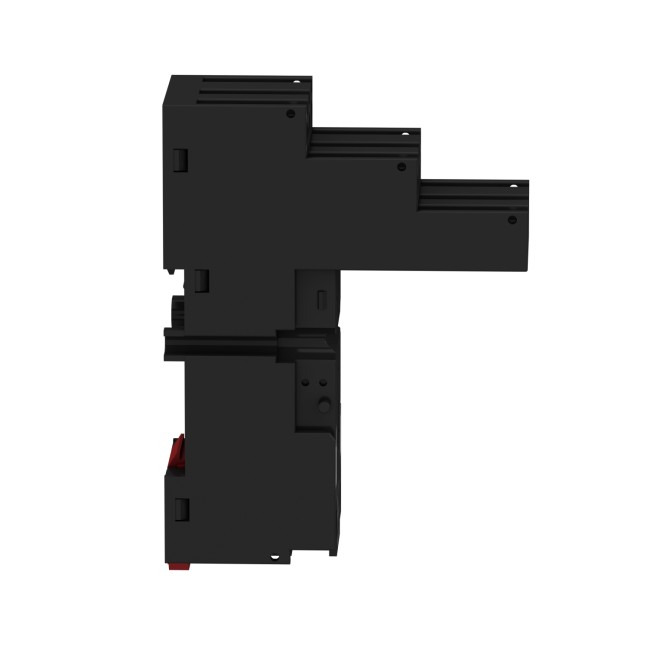

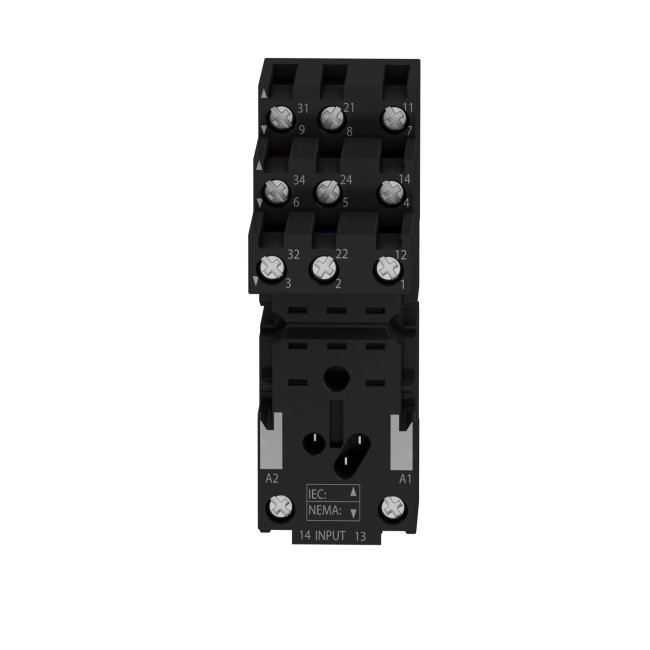

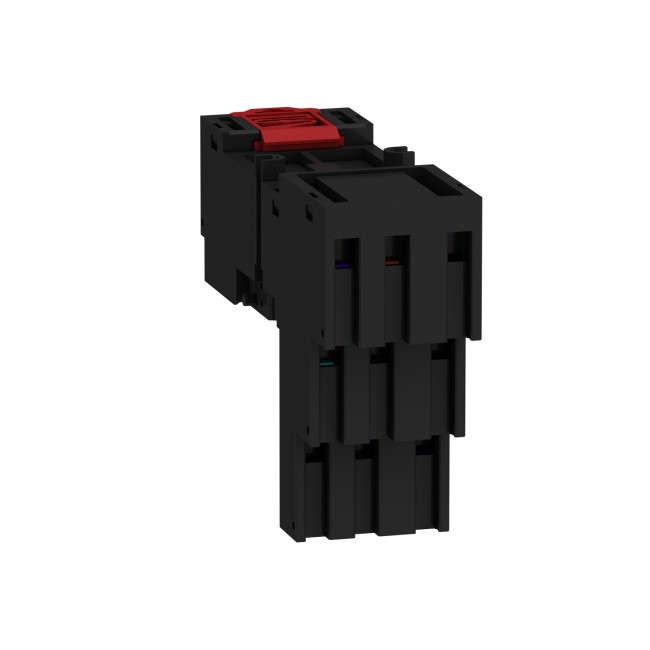

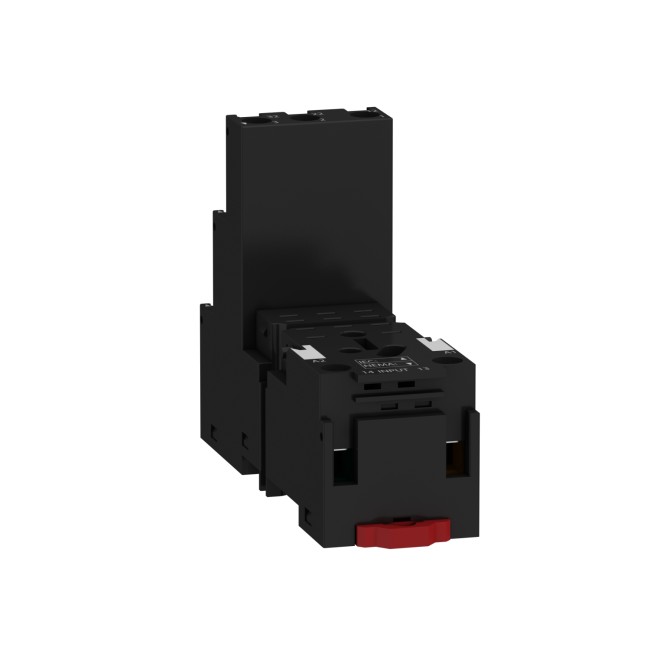

Schneider Electric Harmony Socket for RXM3 relays screw connectors separate contact RXZE2S111M
Harmony Socket for RXM3 relays screw connectors separate contact
Model :RXZE2S111M
SKU :RXZE2S111M
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Harmony Socket for RXM3 relays screw connectors separate contact RXZE2S111M
Schneider Electric Harmony Socket for RXM3 relays screw connectors separate contact RXZE2S111M
"This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
Specifications
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Product or component type | Socket |
| Contact terminal arrangement | Separate |
| Product compatibility | Plug-in relay RXM with 3 C/O contact |
| Shape of pin | Flat |
| Device short name | RXZ |
| Sale per indivisible quantity | 10 |
| [Ith] conventional free air thermal current | 10 A |
|---|---|
| [Ue] rated operational voltage | < 250 V |
| Connections - terminals | Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Tightening torque | < 1 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| Marking | CE |
| Width | 27 mm |
| Net weight | 0.066 kg |
| [Uimp] rated impulse withstand voltage | 4 kV |
|---|---|
| Overvoltage category | III |
| Pollution degree | 3 |
| Standards | IEC 61984 |
| Product certifications | UL Lloyd's CSA |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| Dielectric strength | 2500 V |
