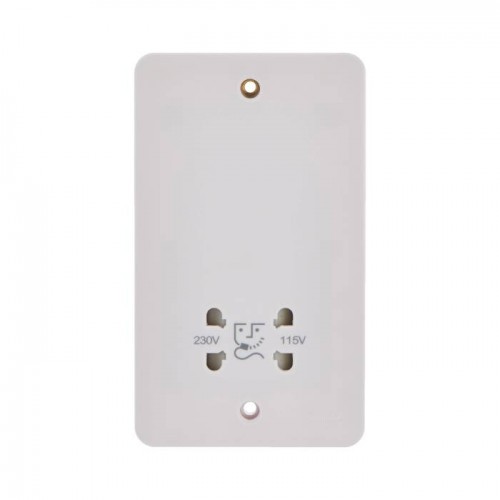

Schneider Electric Lisse Shaver Socket Moulded Dual Voltage 115/230V GGBL7090S
Lisse Shaver Socket, Dual Voltage, 115/230V, GGBL7090S
Model :GGBL7090S
SKU :GGBL7090S
7 days retun policy available
Cash on Delivery available
AED 124.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider Electric Lisse Shaver Socket Moulded Dual Voltage 115/230V GGBL7090S
Schneider Electric Lisse Shaver Socket Moulded Dual Voltage 115/230V GGBL7090S
The Schneider Electric Lisse Shaver Socket Moulded Dual Voltage 115/230V GGBL7090S is ideally suited for new construction and refurbishment projects. Dual voltage shaver socket 115/230V Durable anti-microbial urea construction Concealed Fittings 7mm Raised edge plate with rounded profile Screwed faceplate Screw cap covers provided to allow for a sleek finish IP20 degree of protection Requires 40mm minimum deep backbox.
• Conforms to BS EN 61558-1 IP24
• Stylish modern profile
• For use with European, British, American and Australian 2 pin plugs
• Angled terminals for easier access
• Backed out captive screws for easy installation
• 2 sets of covers to conceal fixing screws
• Nominal plate dimensions: 148.5mm x 87 mm
• Flush mounting back box: min. 47 mm deep
Specifications
| range | Lisse | |
|---|---|---|
| aesthetic name | White moulded | |
| product or component type | Shaver socket | |
| colour tint | Matt white | |
| type of packing | Bag |
| device mounting | Wall mounted | |
|---|---|---|
| input voltage | 230 V AC 50 Hz | |
| output voltage | 115...230 V | |
| material | Urea (carbamide) | |
| fixing mode | By screws M3.5 x 30 mm | |
| connections - terminals | Screw terminals | |
| type of installation | Indoor | |
| width | 87 mm | |
| height | 148.5 mm | |
| depth | 50.5 mm |
| standards | BS EN 61558-2-5 | |
|---|---|---|
| IP degree of protection | IP20 |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 750.2 g | |
| Package 1 Height | 8.5 cm | |
| Package 1 width | 12 cm | |
| Package 1 Length | 18 cm | |
| Unit Type of Package 2 | CAR | |
| Number of Units in Package 2 | 25 | |
| Package 2 Weight | 19.8 kg | |
| Package 2 Height | 20 cm | |
| Package 2 width | 44.5 cm | |
| Package 2 Length | 62.5 cm | |
| Unit Type of Package 3 | P12 | |
| Number of Units in Package 3 | 300 | |
| Package 3 Weight | 257.6 kg | |
| Package 3 Height | 96.5 cm | |
| Package 3 width | 100 cm | |
| Package 3 Length | 120 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | REACh Declaration | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | Yes | |
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure | Product Environmental Profile | |
| Circularity Profile |
