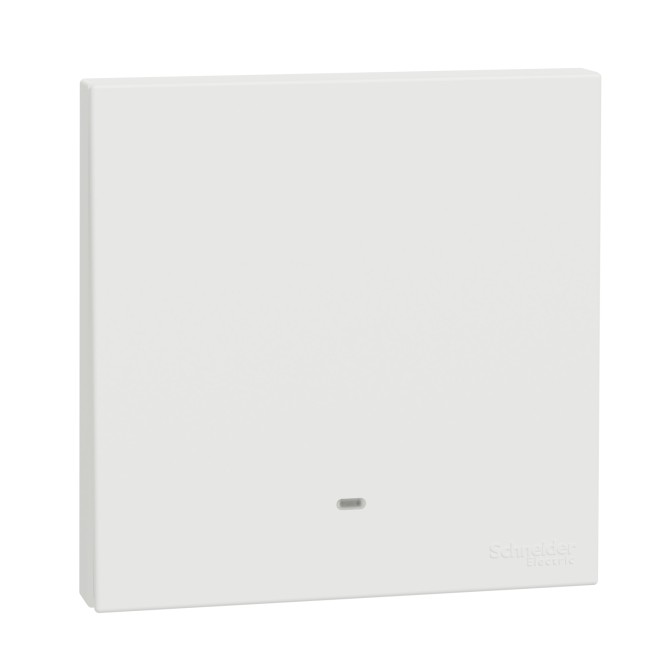

Schneider Electric Pieno 1 Gang 1 Way Switch with Fluorescent Locator White E8231L1F_WE
Schneider Electric Pieno 1 Gang 1 Way Switch with Fluorescent Locator White
Model :E8231L1F_WE
SKU :E8231L1F_WE
7 days retun policy available
Cash on Delivery available
AED 11.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider Electric Pieno 1 Gang 1 Way Switch with Fluorescent Locator White E8231L1F_WE
Schneider Electric Pieno 1 Gang 1 Way Switch with Fluorescent Locator White E8231L1F_WE
Specifications
| Range | Pieno |
|---|---|
| Product or component type | Switch |
| Switch application | Switch |
| Load type | Resistive Fluorescent |
| Cover frame colour tint | White |
| device mounting | Surface Flush |
|---|---|
| Wiring device mounting | Flush Surface |
| Switch function | 1-way |
| Rated current | 16 AX at 250 V AC 50 Hz |
| Local signalling | Fluorescent (white) |
| Number of gangs | 1 gang |
| Material | Polycarbonate: surround Polycarbonate: grid plate |
| Connections - terminals | Pillar terminals |
| Clamping connection capacity | 2 x 1.5 mm² for stranded cable(s) 2 x 2.5 mm² for solid cable(s) |
| Embedding depth | 23 mm |
| Width | 87 mm |
| Height | 87 mm |
| Depth | 23 mm |
| Ambient air temperature for operation | -5…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Standards | SS 227-1 MS IEC 60669-1 GB 16915.1 IEC 60669-1 BS EN 60669-1 |
